Nu Clean 800 Series Electronics Parts Cleaning System
  • Customer: Very large electronics’ customer

  • Item to Clean: Circuit Board with AI processor

  • Contamination: Paste/Flux from soldering process

  • Cleanliness Required: 100%  visually clean

  • Dryness Required: 90/100% dry

  • Process Parameters: Wash and Rinse tank temperatures @ 145°F, Conveyor belt speed @ 0.5 F/M, Drying section @ 200°F

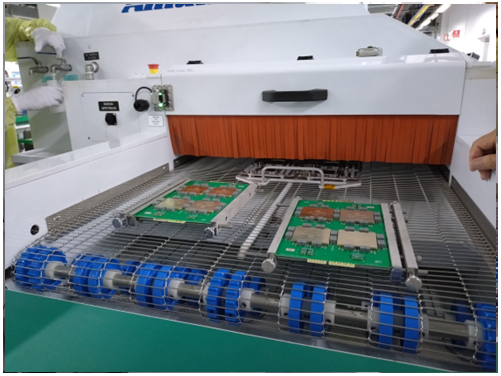

  • Machine Type: NU/CLEAN 830 XLR-FB SPL Conveyorized Belt

Customer Background

A leader of GPU (Graphic Processing Unit) manufacturer for the consumer.

Challenge

Clean residues under tight spacing between the bottom of the PCB assembly and the top surface of the board.

Solution

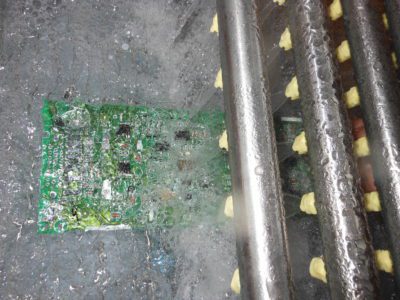

Design the In Line cleaning machine with flow/pressure capability to eliminate the flux/paste residues and an efficient drying section to be sure the PCB assembly is completely dry.

830-NU-Clean-XLR-FB-Electronics-Parts-Washer
