Used & Reconditioned Parts Washers

Used Parts Washers Available for Rebuild and Resale

Recondition Retool Reuse Logo

Alliance Manufacturing reconditions used industrial parts washers. Used parts washers may have been purchased back from a customer who no longer has a need for their cleaning system or has had a change in their manufacturing process. We also take used cleaning machines in on trade for customers looking to upgrade their parts washer for production increases or process changes. We will inspect, clean, and refurbish used parts washers and replace components if necessary. Reconditioned used parts washers may be purchased as-is or be adapted to fit your parts cleaning application.

Please scroll down to view all available used parts washers available for purchase.

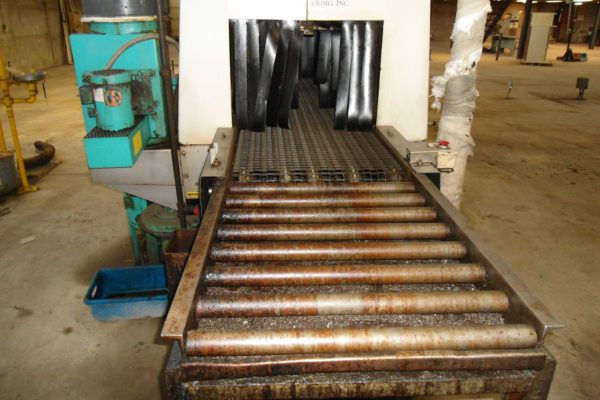

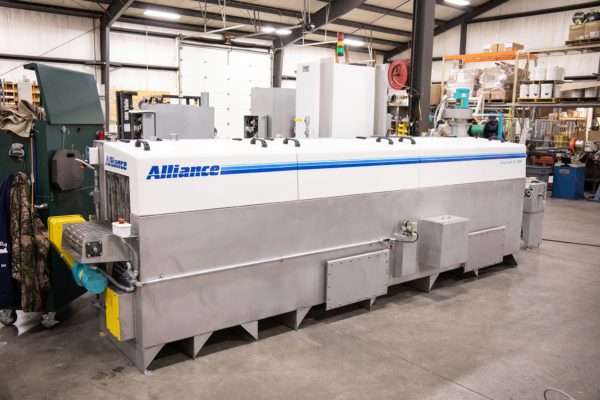

Before reconditioningParts washer for resale

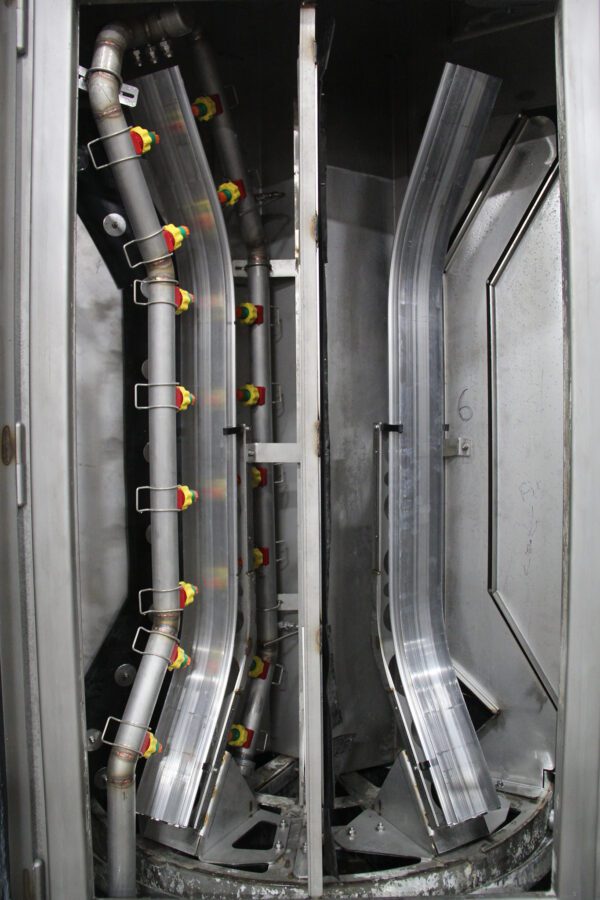

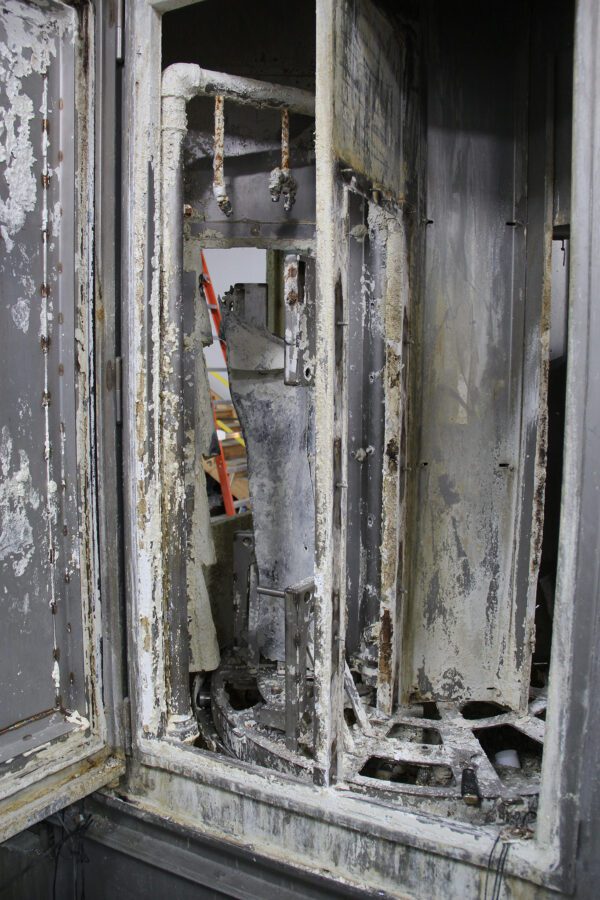

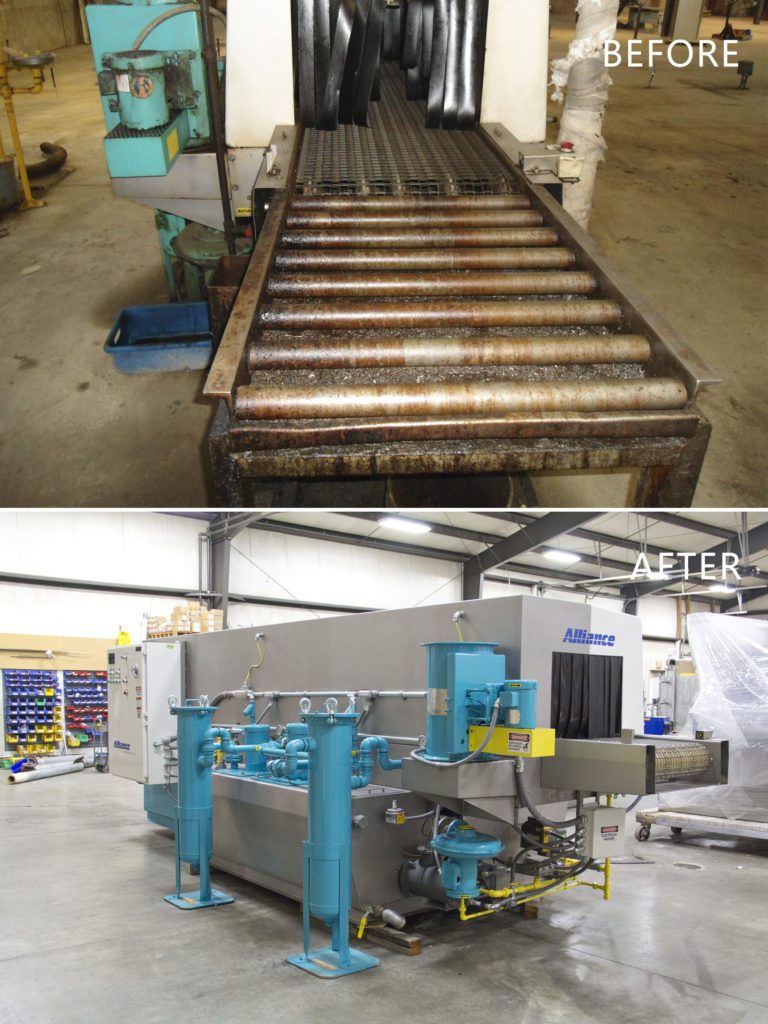

Before reconditioningAfter reconditioning

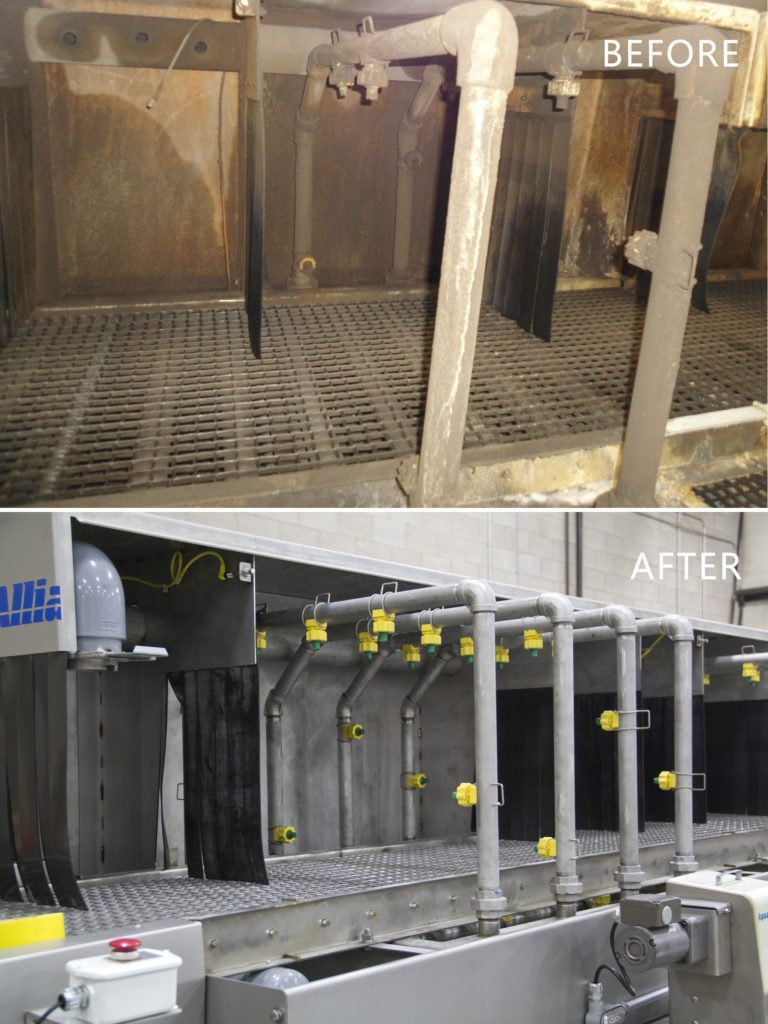

Before Reconditioned Parts WashersAfter Reconditioned Parts Washers

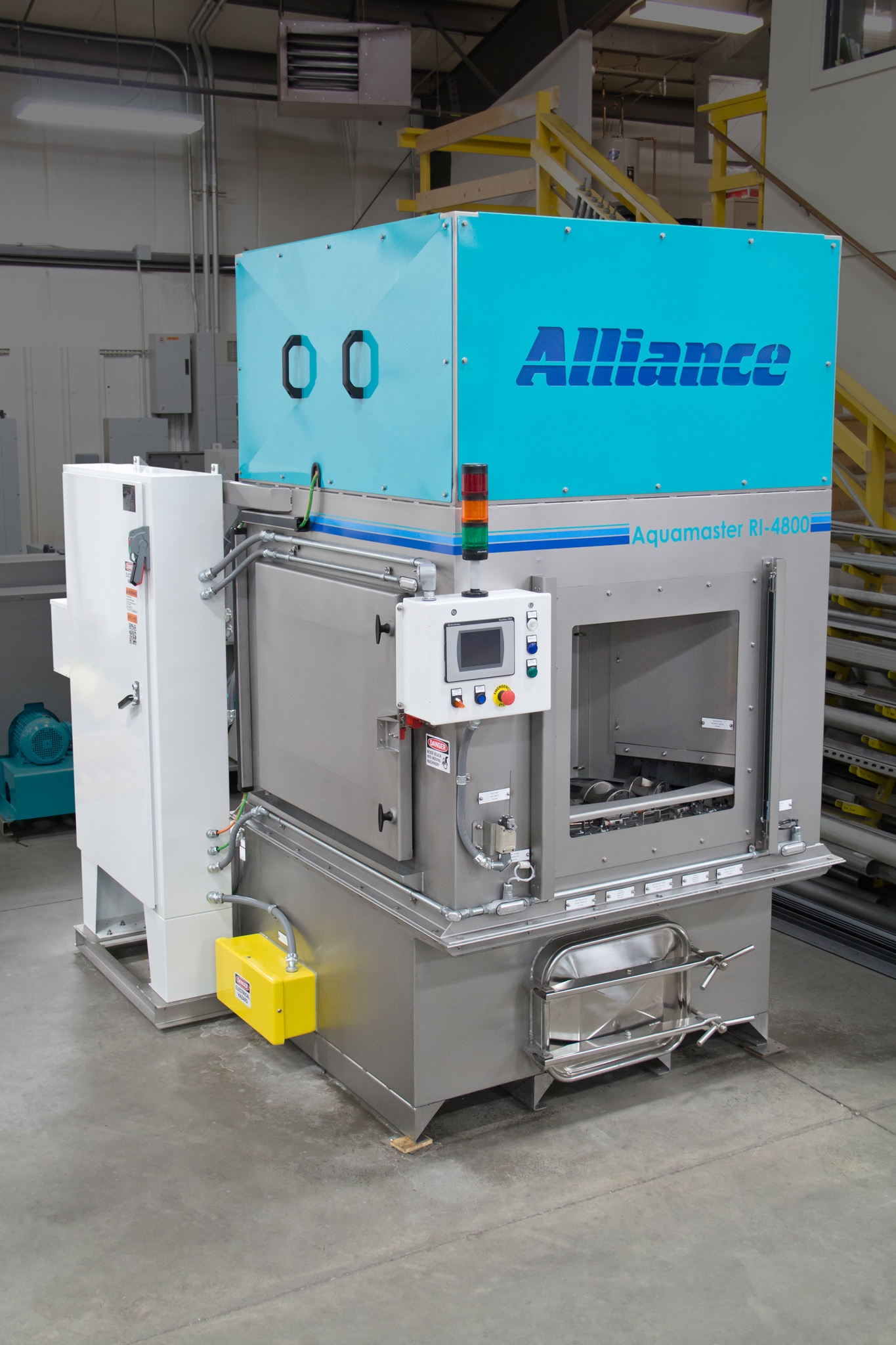

Aquamaster RI-4800 (Machine #772)

Machine type: Rotary Indexing

Model: Aquamaster RI-4800

Reference number: 772

Process stages/zones: Wash, ambient blow-off

Turntable diameter: 48″

Heat type: Electric

Control system: Allen-Bradley PLC and HMI

Voltage: 480V/3PH/60Hz

Full load amps: 79.5A

Accessories: Exhaust fan, micro-filtration, chemical injection, solution heat auto-timer, oil skimmer, door safety interlock, light curtain

General: Stainless steel fabrication, vertical solution pump

Status: Pending return

rotary indexing parts cleaning system

Please note: This photo is of the machine as originally sold.

Aquamaster CD-2400 (Machine #623)

Machine type: Conveyorized Rotary Drum

Model: Aquamaster CD-2400

Reference number: 623

Process stages/zones: Wash, heated blow-off

Drum diameter: 24″ I.D. with 4″ flights

Heat type: Electric

Control system: Relay logic

Voltage: 480V/3PH/60Hz

Full load amps: 75A

Accessories: Exhaust fan, micro-filtration, solution heat auto-timer

General: Stainless steel fabrication, fiberglass removable canopies, horizontal solution pumps

Status: In Process

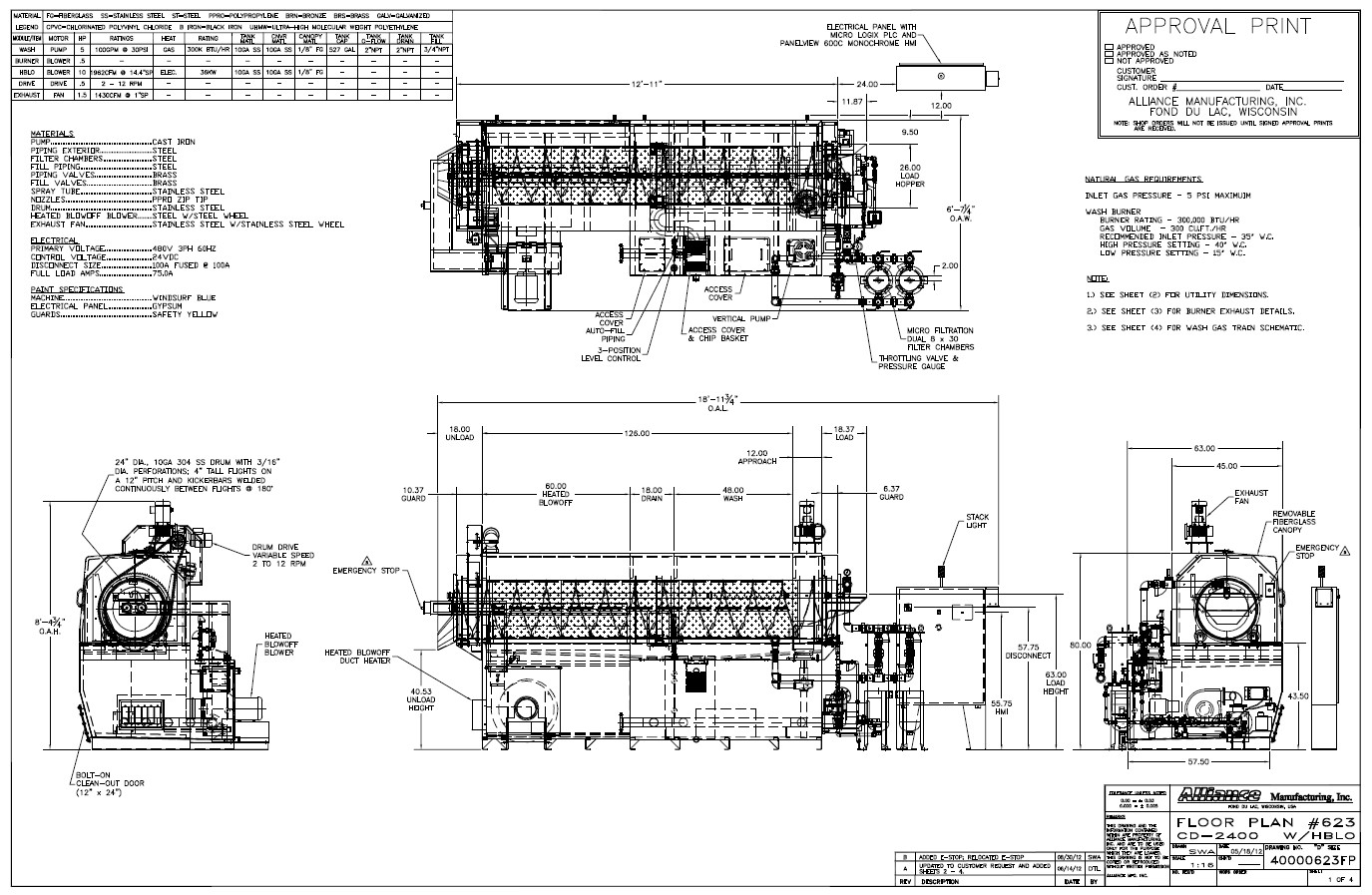

Aquamaster CD-2400 (Machine #623) Blueprint

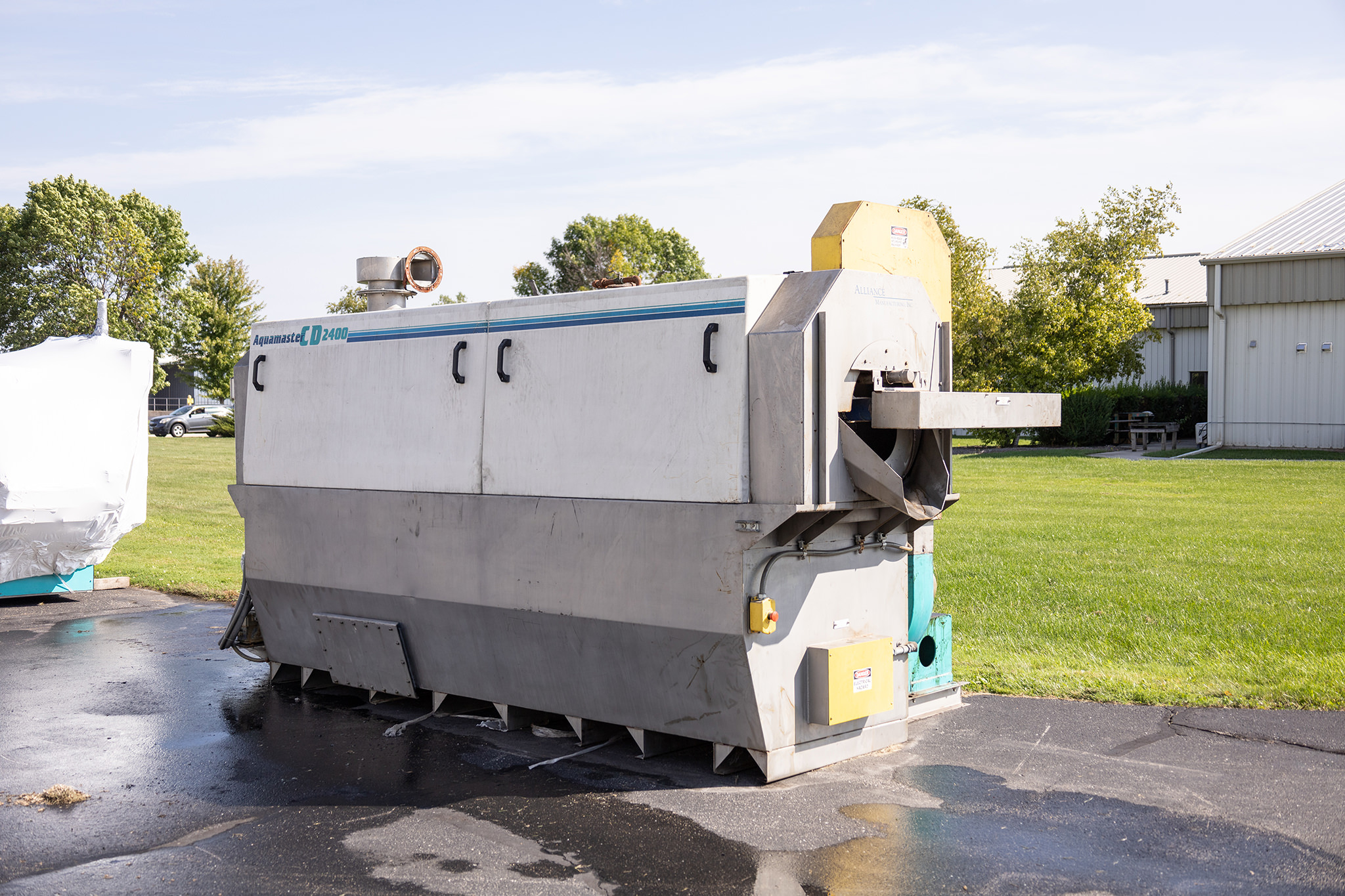

Aquamaster CD-240 Before Refurbishment

Please note: This parts washer is pictured as before refurbishing, and should be used for reference only.

Aquamaster CB-2400 (Machine #37)

Machine type: Conveyorized Belt

Model: Aquamaster CB-2400

Serial number: 037-1196

Process stages/zones: Wash, ambient blow-off

Product capacity: 24″ wide x 18″ tall

Heat type: Electric

Control system: Allen-Bradley, relay logic

Voltage: 480V/3PH/60Hz

Full load amps: 91 A

Accessories: Exhaust fan, solution heat auto-timer

General: Stainless steel fabrication, Stainless steel removable canopy, vertical solution pump

Status: In process

Aquamaster CC-1800X (Machine #366)

Machine type: Conveyorized Indexing

Model: Aquamaster CC-1800X

Serial number: 366-0705

Process stages/zones: Wash, intermediate blow-off, rinse, regenerative blow-off, compressed air blow-off, cool

Product capacity: 18″ wide x 6″ tall

Heat type: Gas

Control system: Allen-Bradley PLC with HMI control

Voltage: 480V/3PH/60Hz

Full load amps: 215A

Accessories: Exhaust fans, cooling module, solution heat auto-timer, stack light, light curtains

General: Stainless steel fabrication, fiberglass removable canopy, vertical solution pumps.

Status: Staged at warehouse

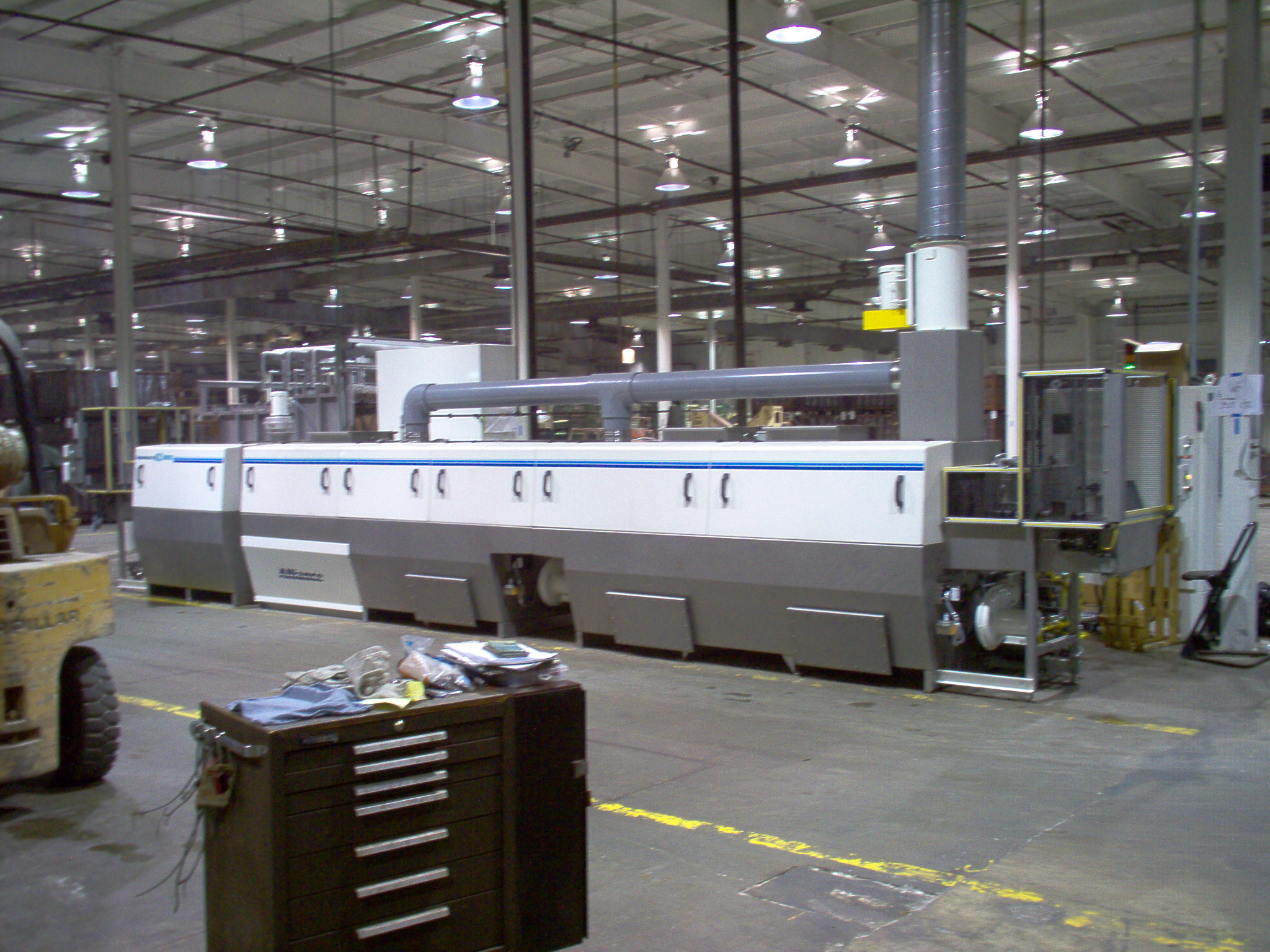

Aquamaster CC-1800X

Please note: This parts washer is pictured in the previous customer’s facility as originally sold, and should be used for reference only.

Aquamaster RT-3600 (Machine #905)

Machine type: Rotary Top-Load Cabinet

Model: Aquamaster RT-3600

Serial number: 0905-0418

Process stages/zones: Wash

Product capacity: Clear Working Height: 30″ / Maximum Load Capacity: 750 lbs. (Evenly Distributed)

Turntable diameter: 36″

Heat type: Electric

Control system: Relay Logic

Voltage: 480V/3PH/60Hz

Full load amps: 35.6 FLA

Accessories: Mist collector, Chemical pump, Solution heat auto-timer, Door interlock switches, Sump tank with central drain

General: Stainless steel fabrication, Stainless steel canopy with sensor, vertical solution pumps.

Status: Staged at warehouse

Aquamaster CB-2400 (Machine #250) – PENDING RETURN

Conveyorized belt cleaning system

Machine type: Conveyorized Belt

Model: Aquamaster CB-2400

Serial number: 250-0000

Process stages/zones: Wash, ambient blow-off

Product capacity: 24″ belt width x 18″ clearance

Heat type: Electric

Control system: Relay logic

Voltage: 480V/3PH/60Hz

Full load amps: 159A

Accessories: Exhaust fan, solution heat auto-timer, oil skimmer, dual micro-filtration, chemical injection, load product shutdown timer, interior lighting and viewing window

General: Stainless steel fabrication, vertical solution pump.

Status: Pending return

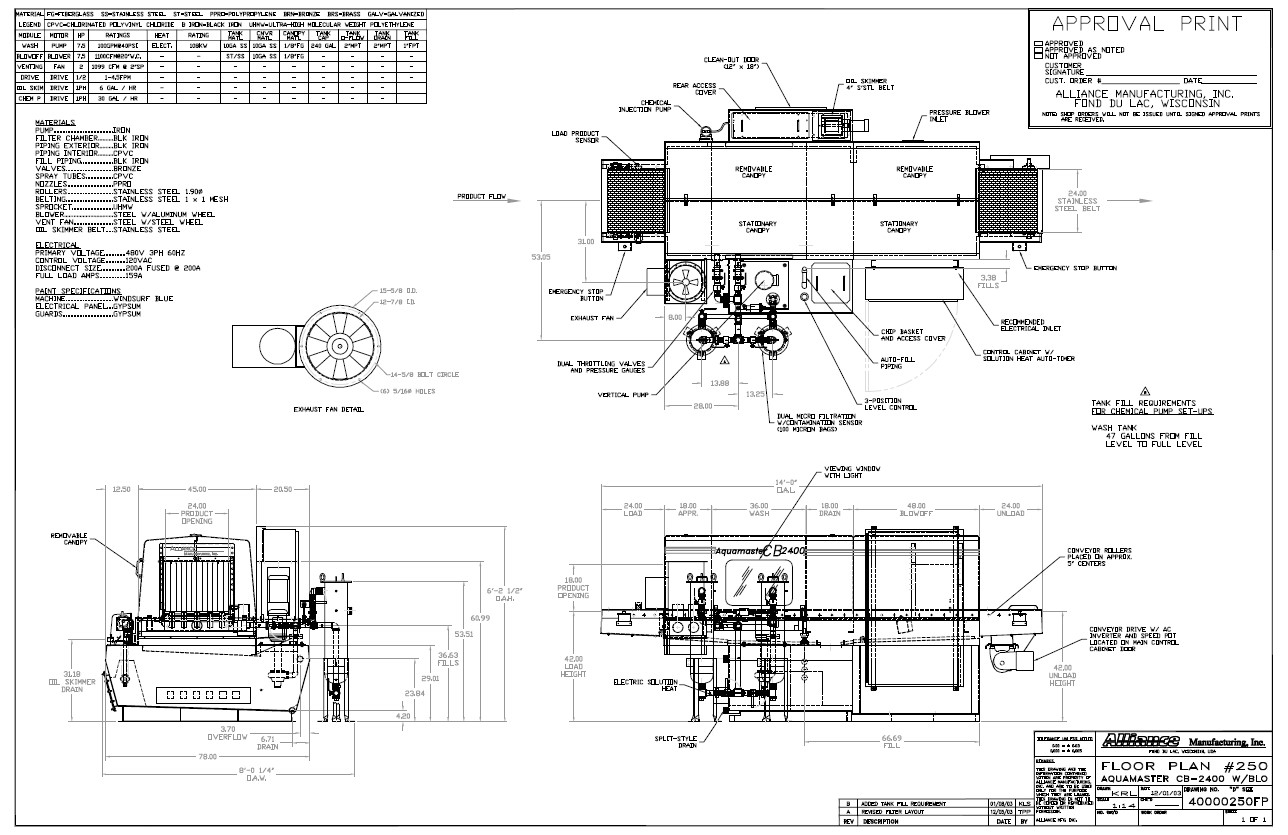

Aquamaster CB-2400 (Machine #250) Blueprint SOLD

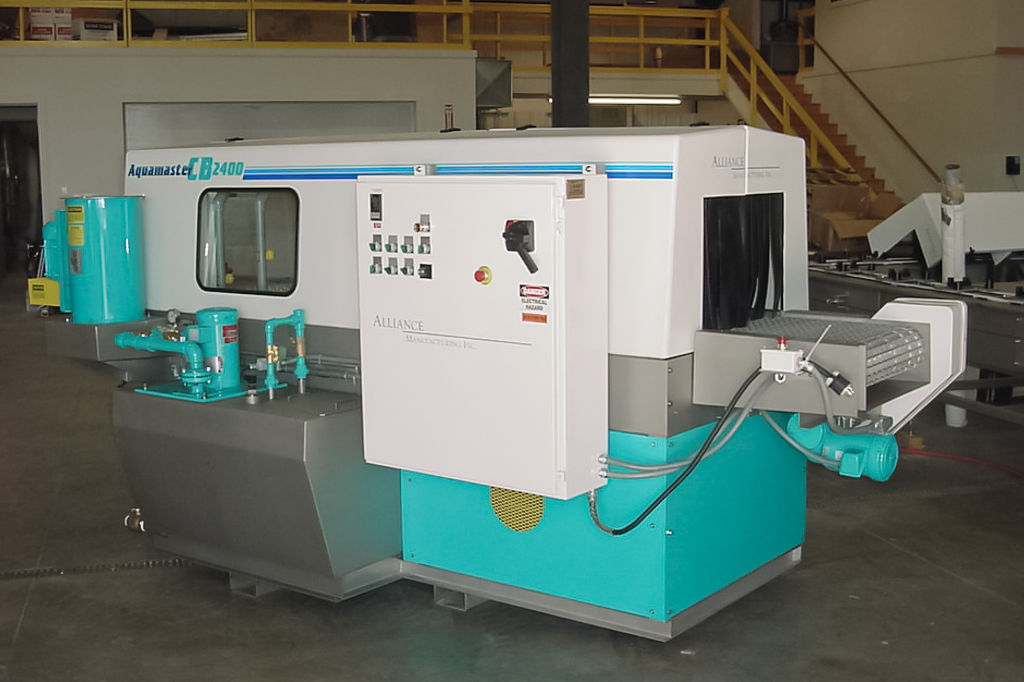

Aquamaster CB-2400 (Machine #250) Conveyorized Belt Cleaning System

Please note: This parts washer is pictured as originally sold, and should be used for reference only.

Aquamaster CC-600 (Machine #521)

Machine type: Return-To-Operator

Model: Aquamaster CC-600

Serial number: 0521-1009

Process stages/zones: Wash, ambient blow-off

Product capacity: TBD / Load Area 11.25″

Heat type: Electric

Control system: Allen-Bradley PLC with HMI control

Voltage: 480V/3PH/60Hz

Full load amps: 68A

Accessories: Mist Collector, Oil skimmer, Micro filtration, Solution head auto-timer, Light curtain

General: Stainless steel fabrication, Stainless steel, horizontal solution pump

Status: In process

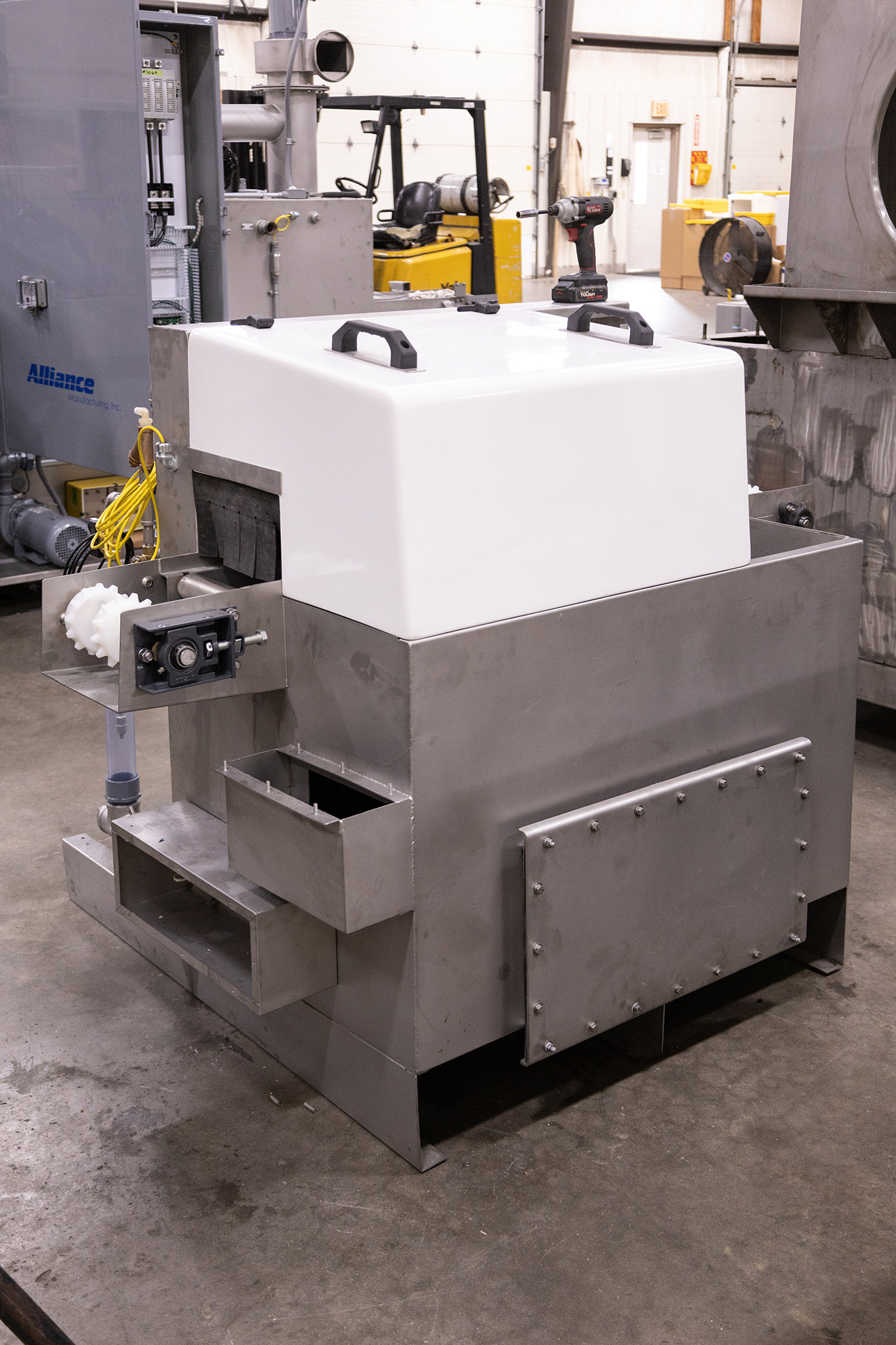

Please note: This used parts washer is pictured during the reconditioning/rebuilding process, and should be used for reference only.

Aquamaster CD-1800 (Machine #423) – SOLD

Machine type: Conveyorized Rotary Drum

Model: Aquamaster CD-1800E

Reference number: 423

Process stages/zones: Wash, heated blow-off

Drum diameter: 18″ I.D.

Heat type: Electric

Control system: Relay logic

Voltage: 480V/3PH/60Hz

Full load amps: 113.4A

Accessories: Exhaust fan, micro-filtration, solution heat auto-timer

General: Stainless steel fabrication, fiberglass removable canopies, horizontal solution pumps

Status: Sold

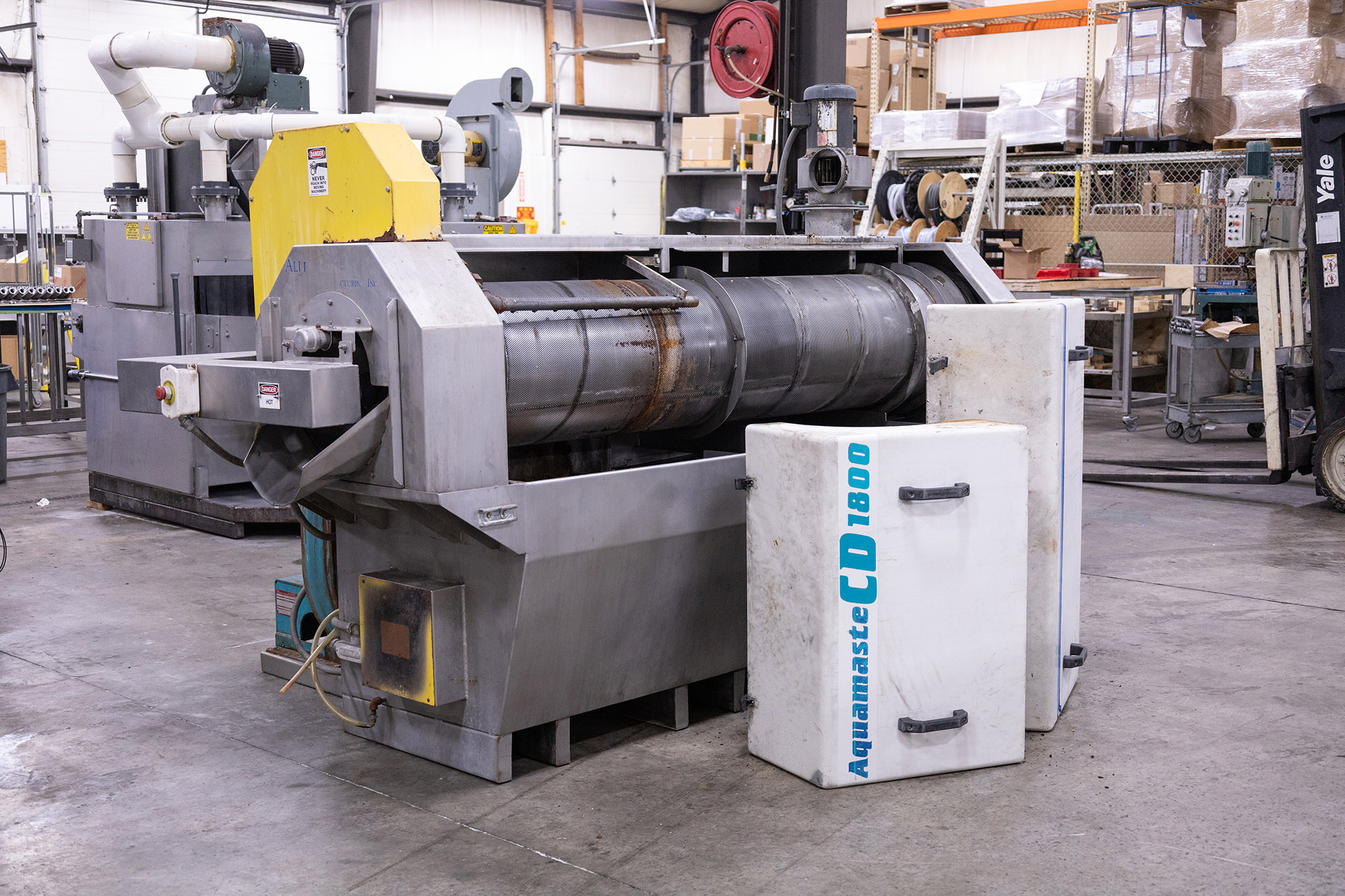

Aquamaster CD-1800 (Machine #423) Conveyorized Rotary Drum

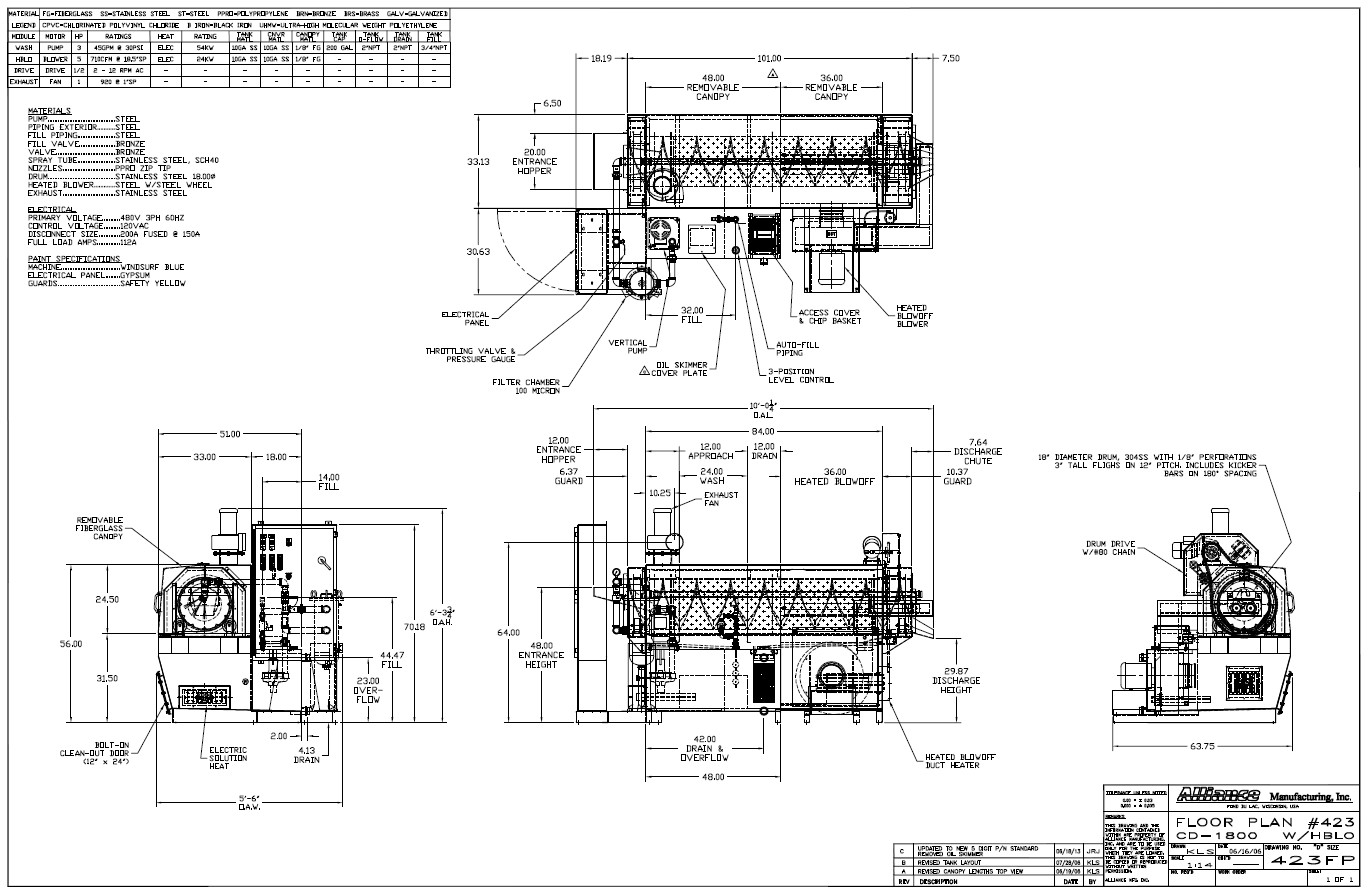

Aquamaster CD-1800 (Machine #423) Blueprint

Aquamaster CC-600 (Machine #657)

Machine type: Return-To-Operator

Model: Aquamaster CC-600

Serial number: 0657-0413

Process stages/zones: Wash, Ambient, Heated blow-off

Product capacity: TBD – Good for consistent tubular / Shaft type components

Heat type: Electric

Control system: Allen-Bradley PLC with HMI control

Voltage: 480V/3PH/60Hz

Full load amps: 67.3 FLA

Accessories: Mist collector, micro-filtration, oil skimmers, solution heat auto-timer, light curtain

General: Stainless steel fabrication, Stainless steel, horizontal solution pump

Status: In process

Please note: This used parts washer is pictured during the reconditioning/rebuilding process, and should be used for reference only.

STOELTING

Machine type: Conveyorized Belt – Electric Heat

Model: VSF(i) – 212

Process stages/zones: Immersion / Spin wash,

Rinse, Heated Blow off

STOELTING Used Parts Washer Machine



Aquamaster RT-3000 (Machine #860) – SOLD

Machine type: Rotary Top-Load Cabinet

Model: Aquamate RT-3000

Serial number: 860-0617

Process stages/zones: Wash

Product capacity: 30″ diameter x 24″ clearance

Heat type: Electric

Control system: Relay Logic

Voltage: 480V/3PH/60Hz

Full load amps: 33.6A

Accessories: Exhaust fan

General: Stainless steel fabrication, hinged stainless steel access cover, vertical solution pump, hinged clean-out door

Status: SOLD

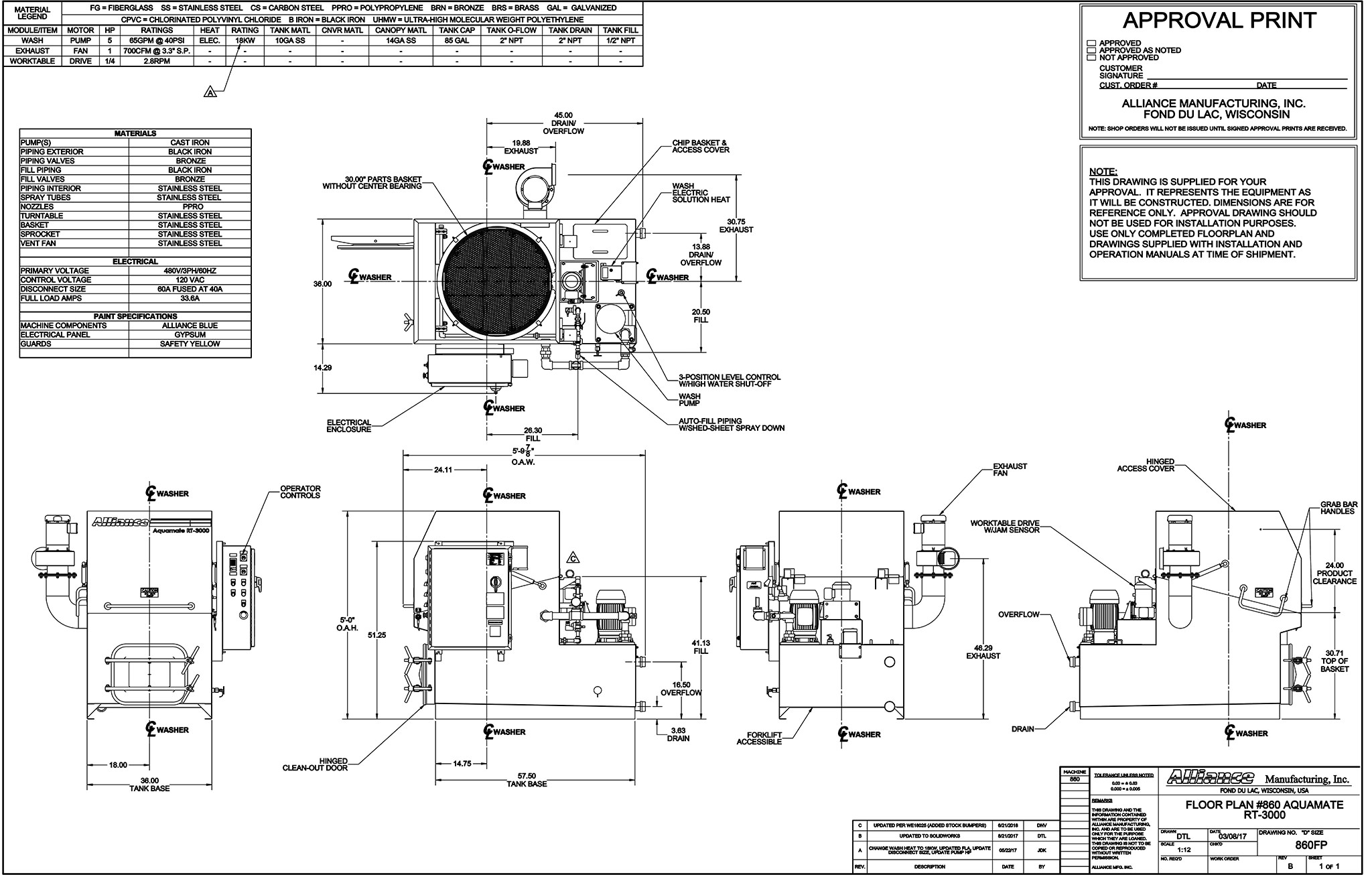

Aquamaster RT-3000 (Machine #860) Blueprint -SOLD

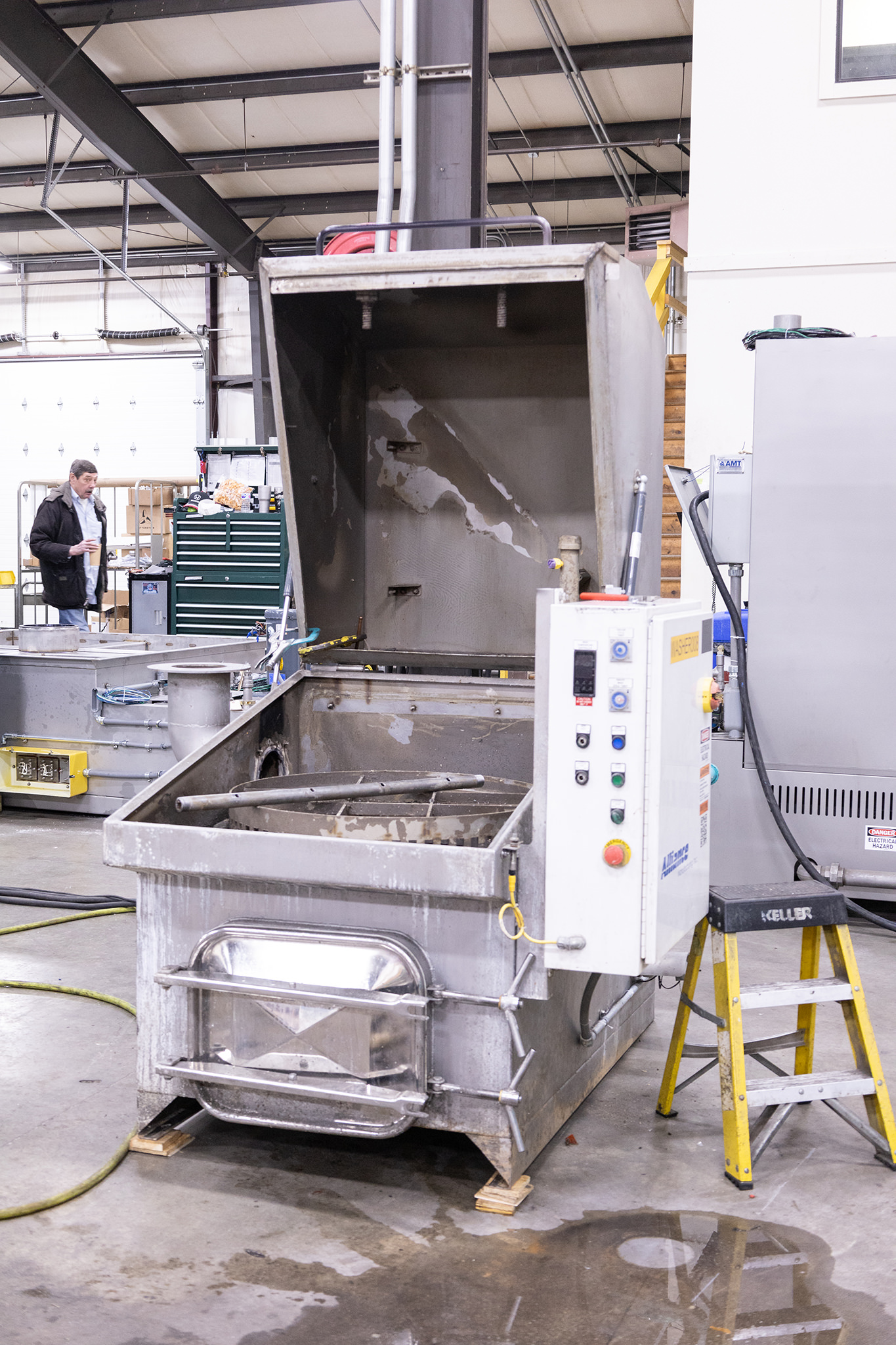

Aquamaster RT-3000 (Machine #860) Rotary Top-Load Cabinet

Please note: This used parts washer is pictured before refurbishing, and should be used for reference only.

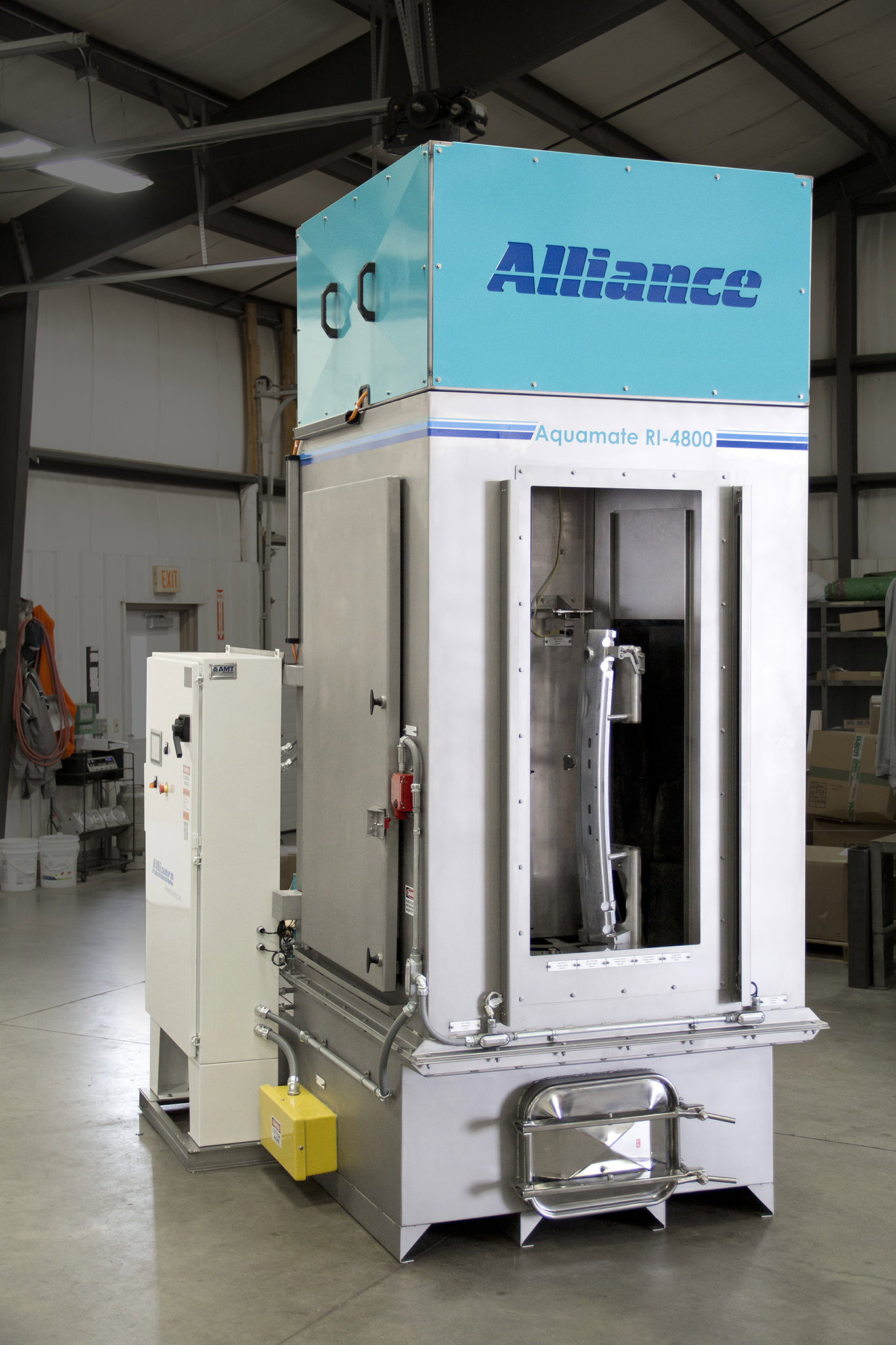

Aquamaster RI-4800 (Machine #863) – SOLD

Machine type: Rotary Indexing

Model: Aquamaster RI-4800

Serial number: 863-0617

Process stages/zones: Wash, ambient blow-off

Product capacity: 48″ diameter x 60″ clearance

Heat type: Electric

Control system: Allen-Bradley PLC with HMI control

Voltage: 480V/3PH/60Hz

Full load amps: 82.9A

Accessories: Exhaust fan, solution heat auto-timer, light curtain, safety interlocks, compressed air

General: Stainless steel fabrication, vertical solution pump, can be configured for robotic or manual load/unload.

Status: SOLD

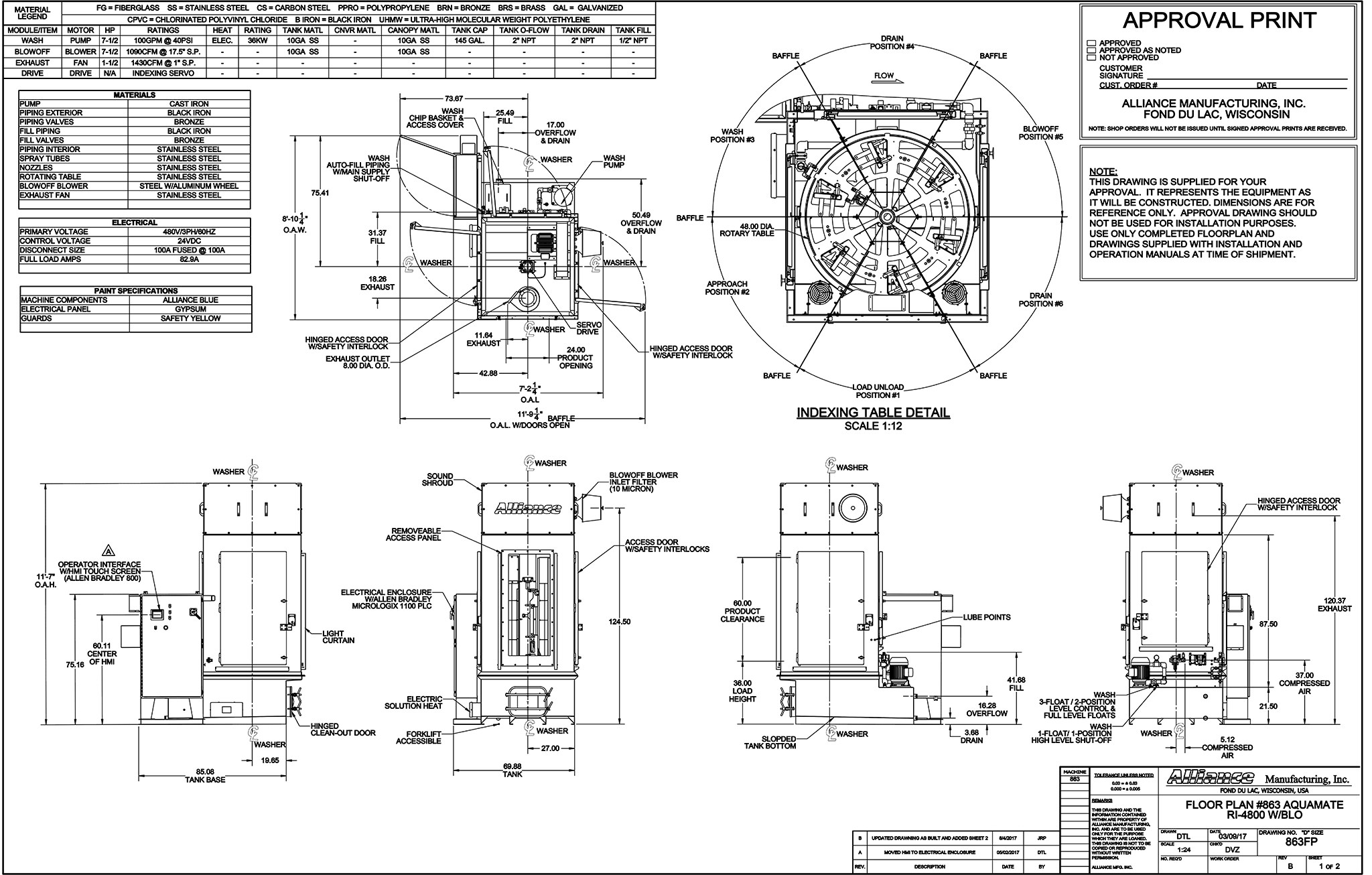

Aquamaster RI-4800 (Machine #863) Blueprint -SOLD
Aquamaster RI-4800 (Machine #863) Rotary Indexing

Please note: This parts washer is pictured as originally sold, and should be used for reference only.

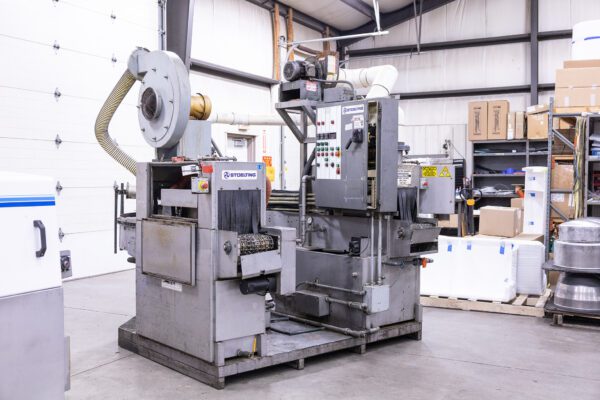

Used Stoelting Conveyor Belt Washer

Contact for details

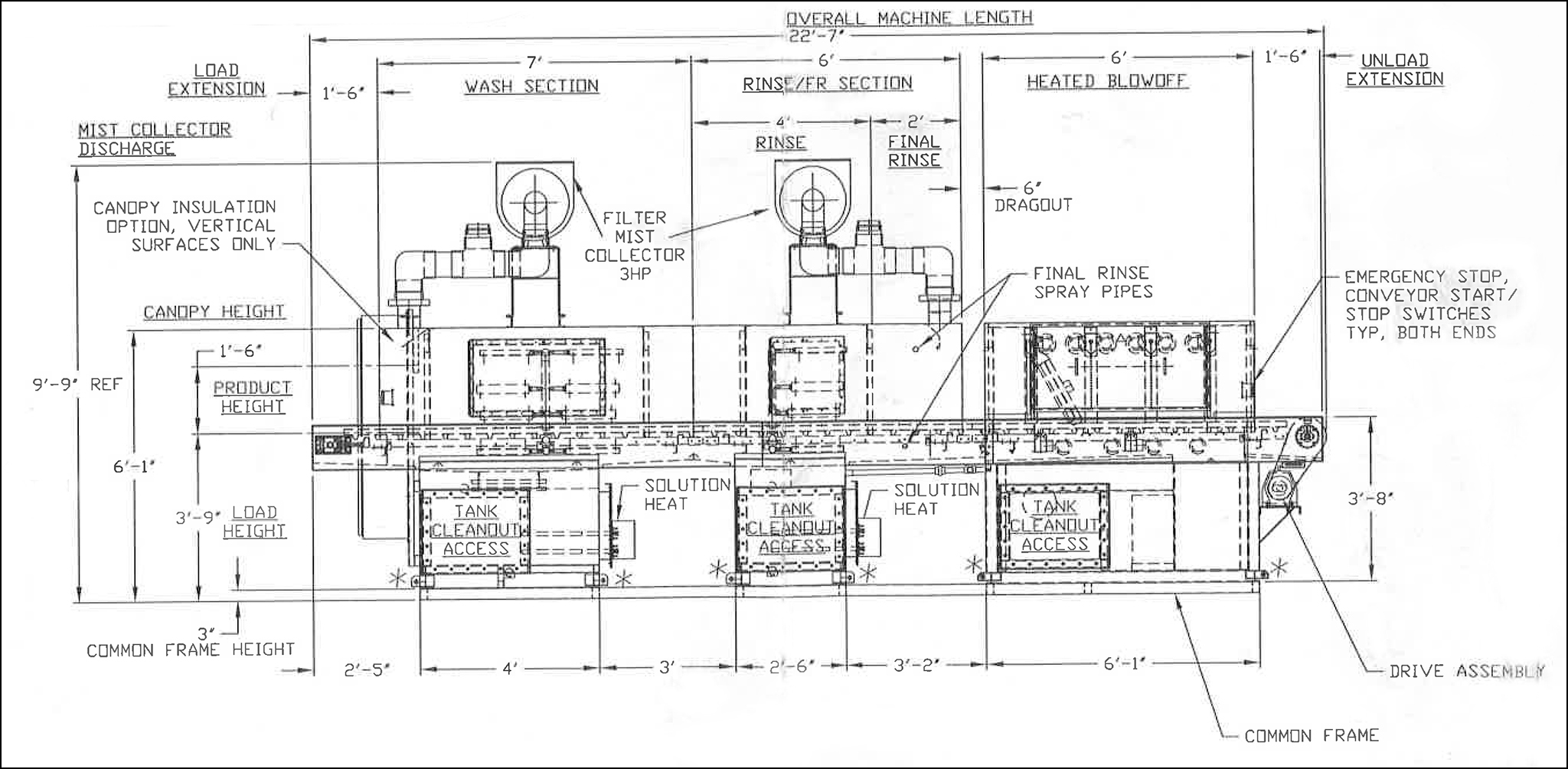

Stoelting Wash Schunk CAD

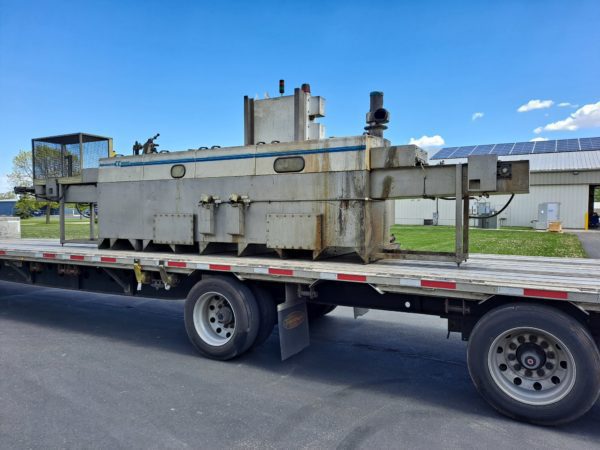

Before Reconditioning

Please note: This parts washer is pictured as originally sold, and should be used for reference only.

Reconditioned Parts Washer Inquiry

Please fill out this form if you are interested in purchasing one of the reconditioned used industrial parts washers listed for sale on this page.
