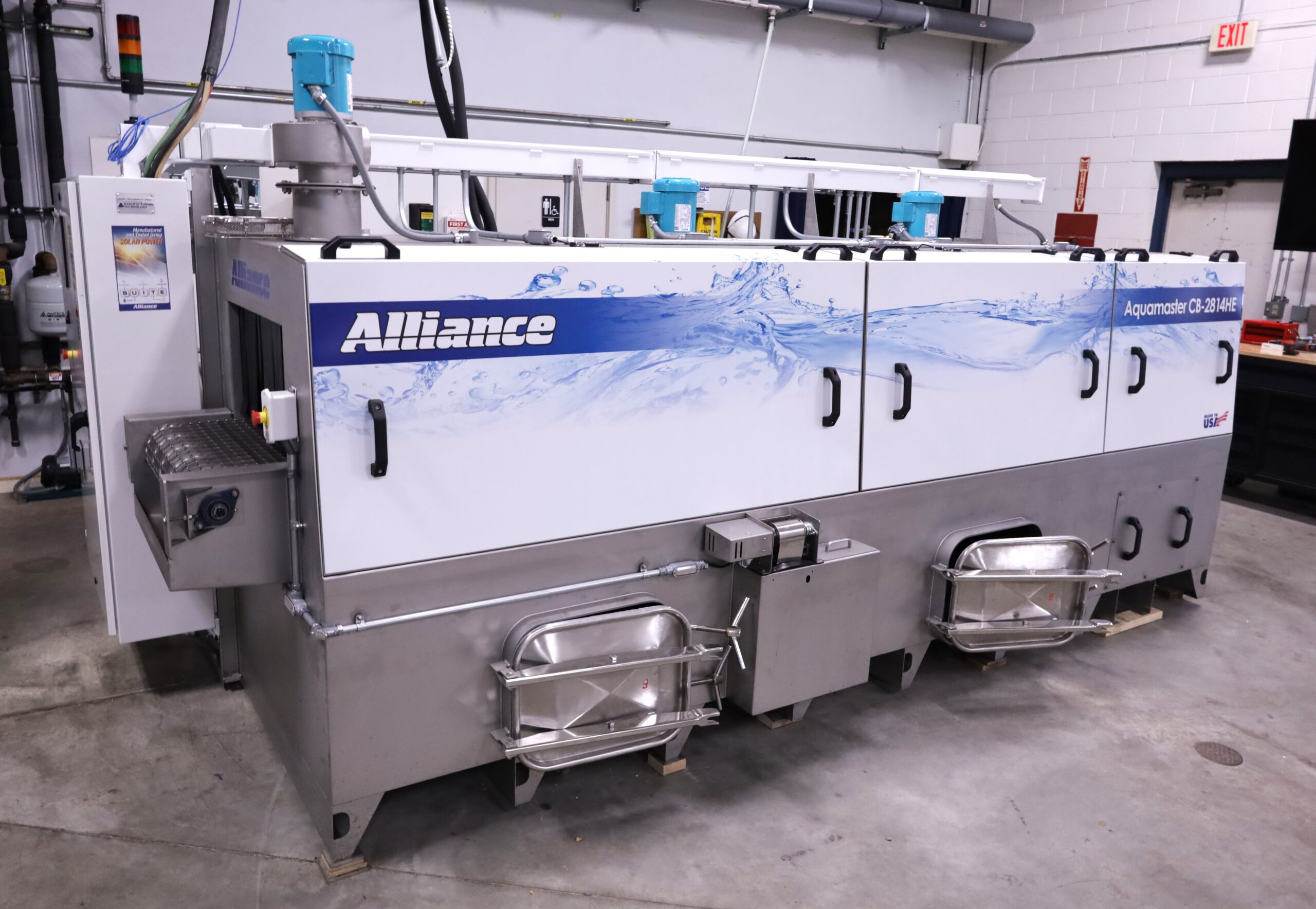

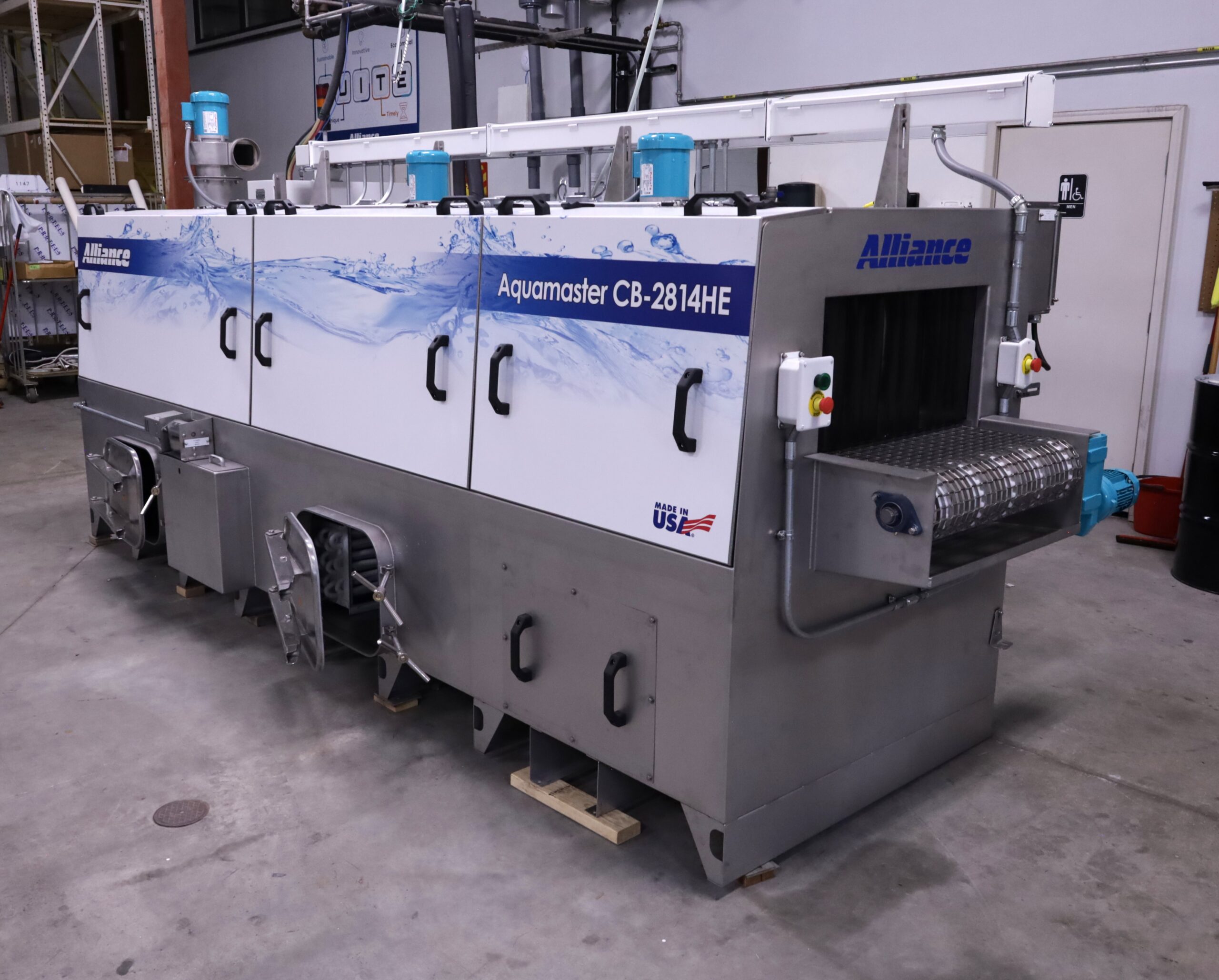

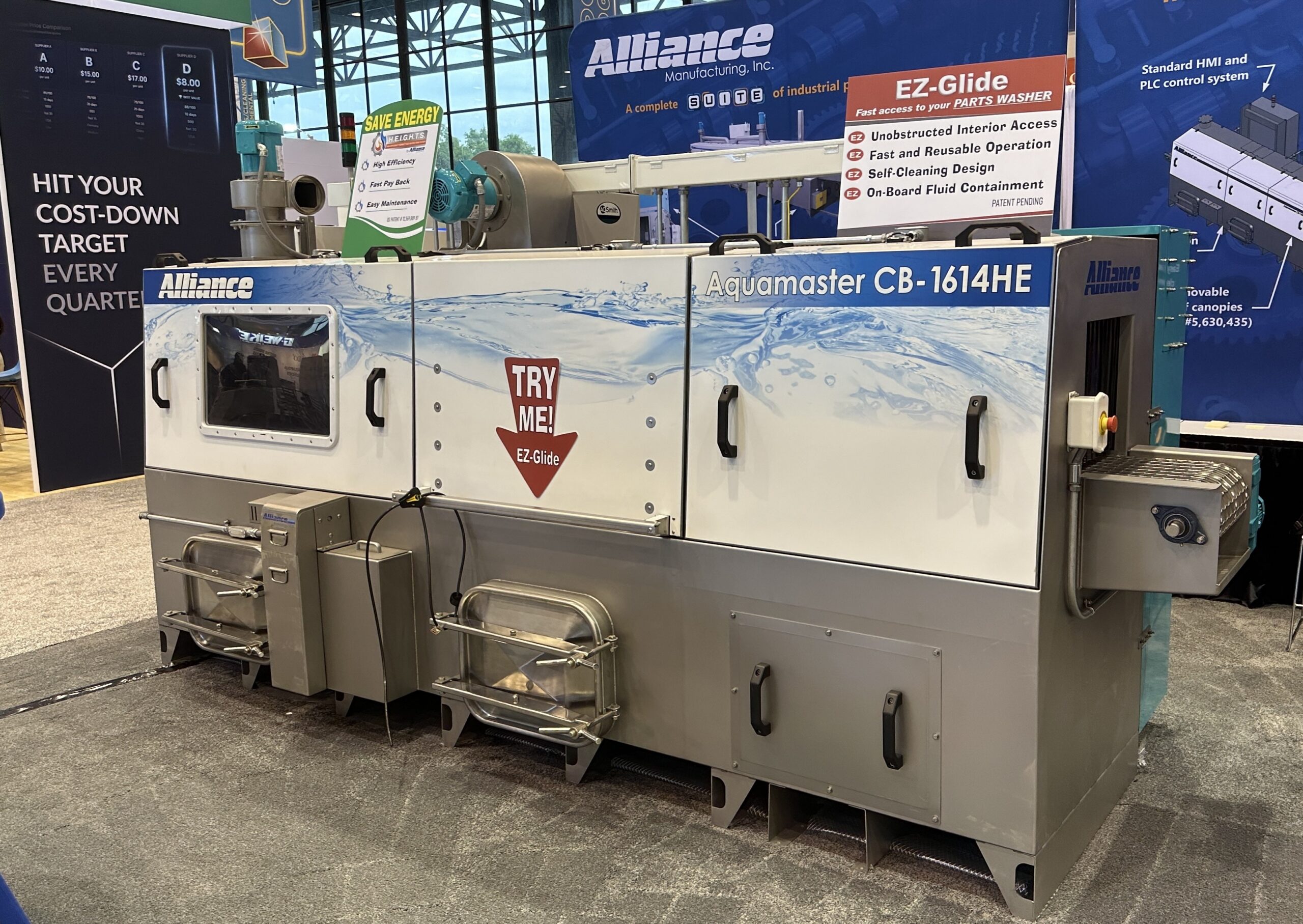

Aquamaster HE Series

Call us: 1-800-969-7960

Alliance Manufacturing’s HE Series represents the next generation of high-efficiency industrial parts washing. Designed from the ground up for improved cleaning performance, simplified maintenance, and reduced energy demand, the HE Series builds on decades of washer experience while introducing a more standardized, efficient, and service-friendly platform.

Whether you need a conveyorized washer for high-volume production, a more efficient heating package, improved moisture control, or smarter machine monitoring, the HE Series is built to help manufacturers clean better while operating smarter.

1133website

1133

1133 (2)

1133 (3)

1133 (5)



Built Around Better Coverage

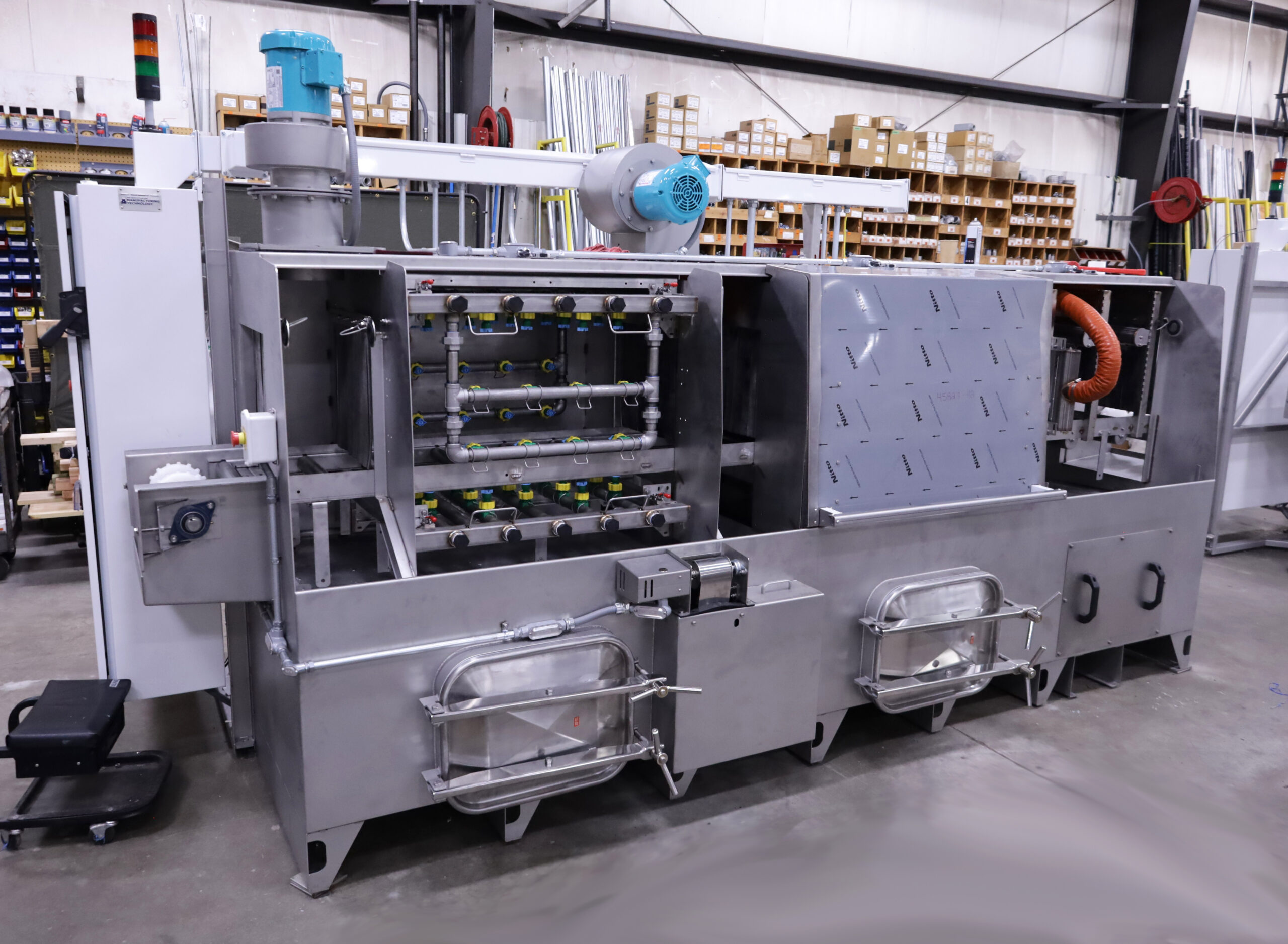

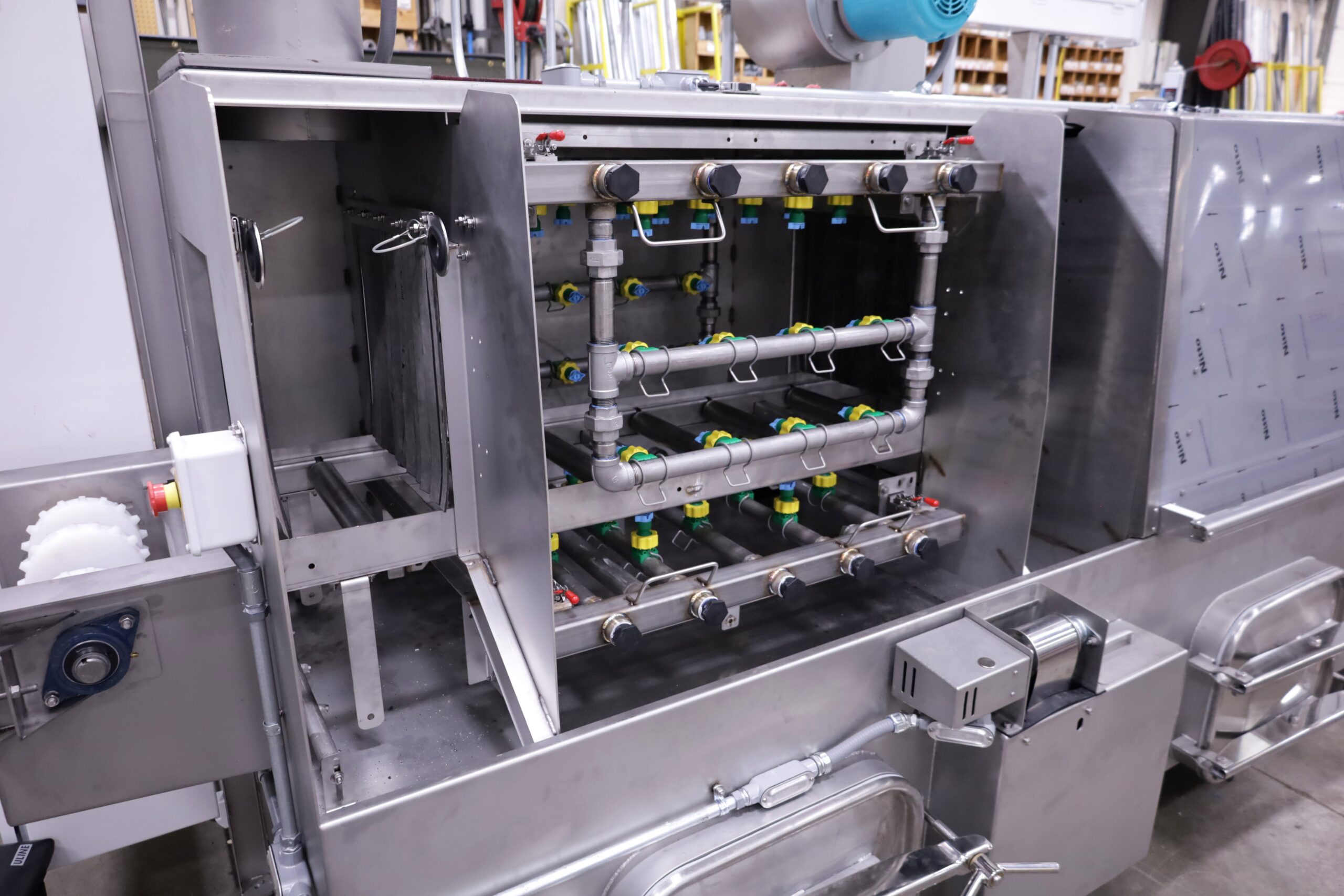

Every HE Series washer is designed with double full-coverage spray zones, allowing the full surface of parts to be contacted from multiple angles as they move through the machine. Standardized 65 quick removal nozzles provide reliable coverage while making maintenance faster and easier. Nozzles are fixed to adjustable ball ends to make fine turning nozzle targets easy.

The result is a cleaner, more consistent process with fewer service headaches.

Smarter Water and Chemistry Control

The HE Series uses improved fill logic to control water levels within a fixed operating band.

This improved control supports more accurate chemical injection, better process consistency, and reduced waste.

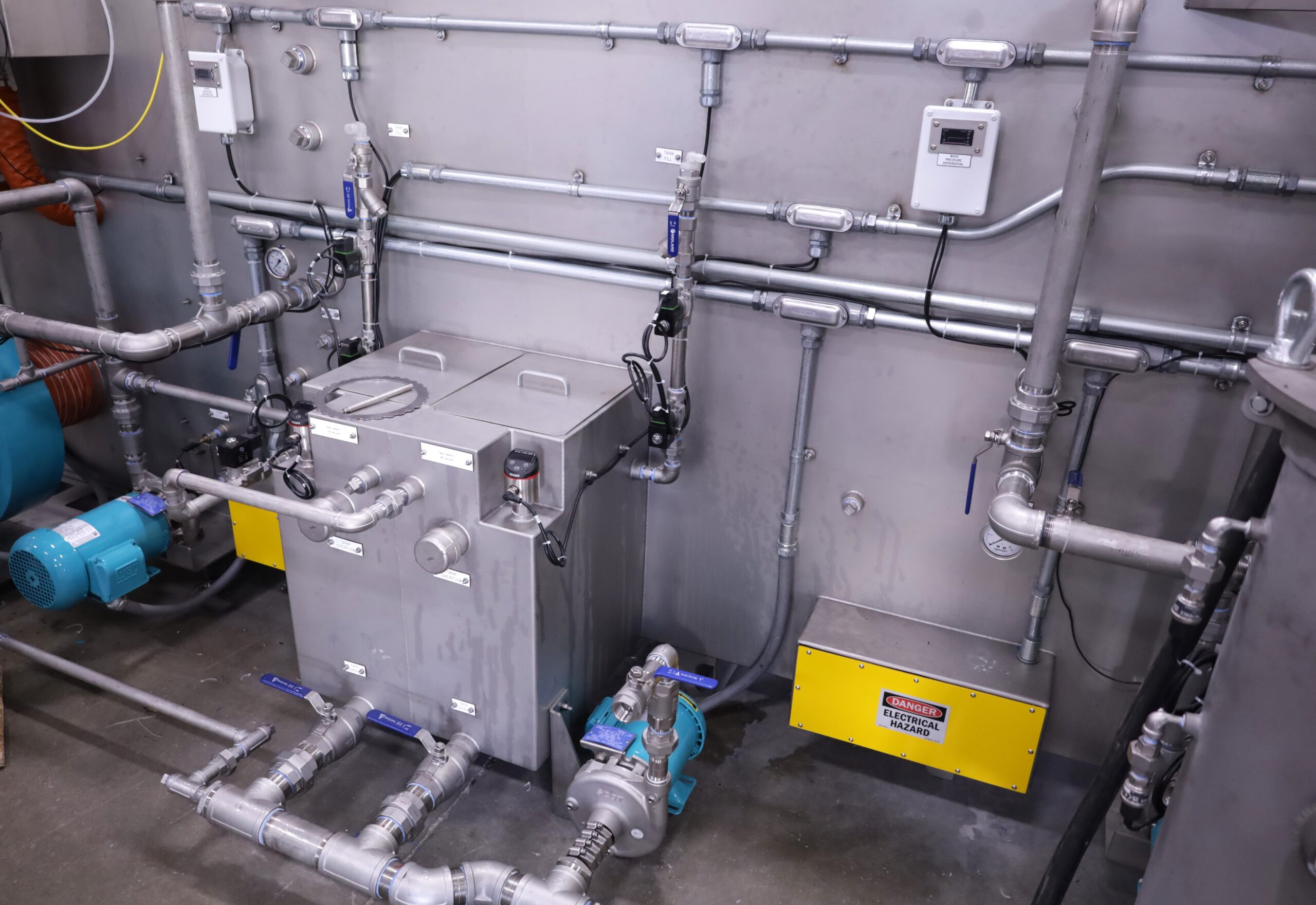

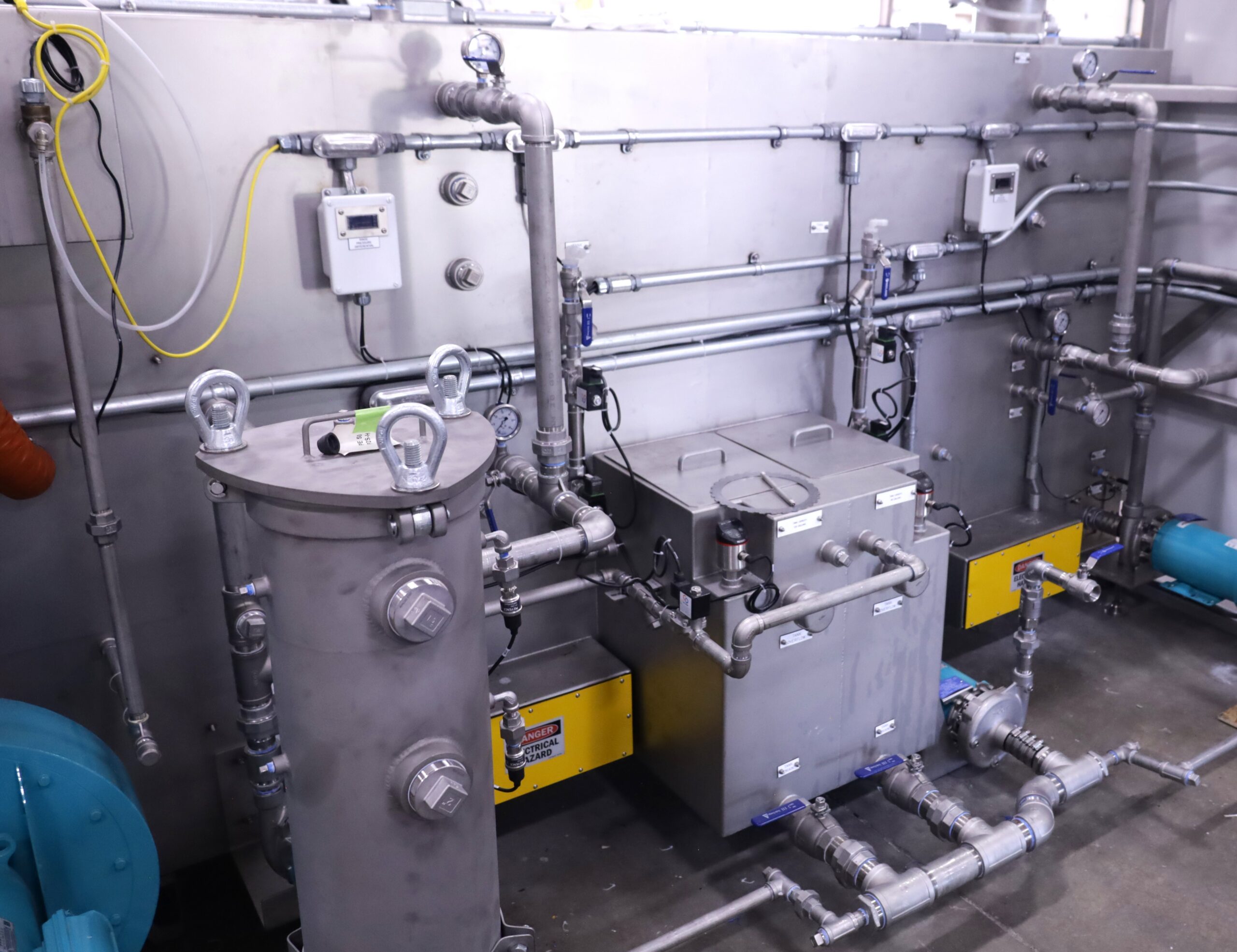

An upgraded chemical injection system provides a durable, low-maintenance alternative to traditional dosing pumps. Optional flow verification and drum-level monitoring are available for applications that require added confirmation and process traceability.

Designed for Efficiency

From reduced power requirements to improved spray efficiency, the HE Series was engineered to make better use of the water, heat, and energy already in the machine.

Key efficiency-focused updates include:

• Optimized spray coverage
• Improved internal air flow
• Improved exhaust balance
• Reduced canopy weight
• Integrated high efficiency gas heat options
• More efficient moisture and chemistry collection
• Lower-maintenance chemical dosing

Easier to Maintain

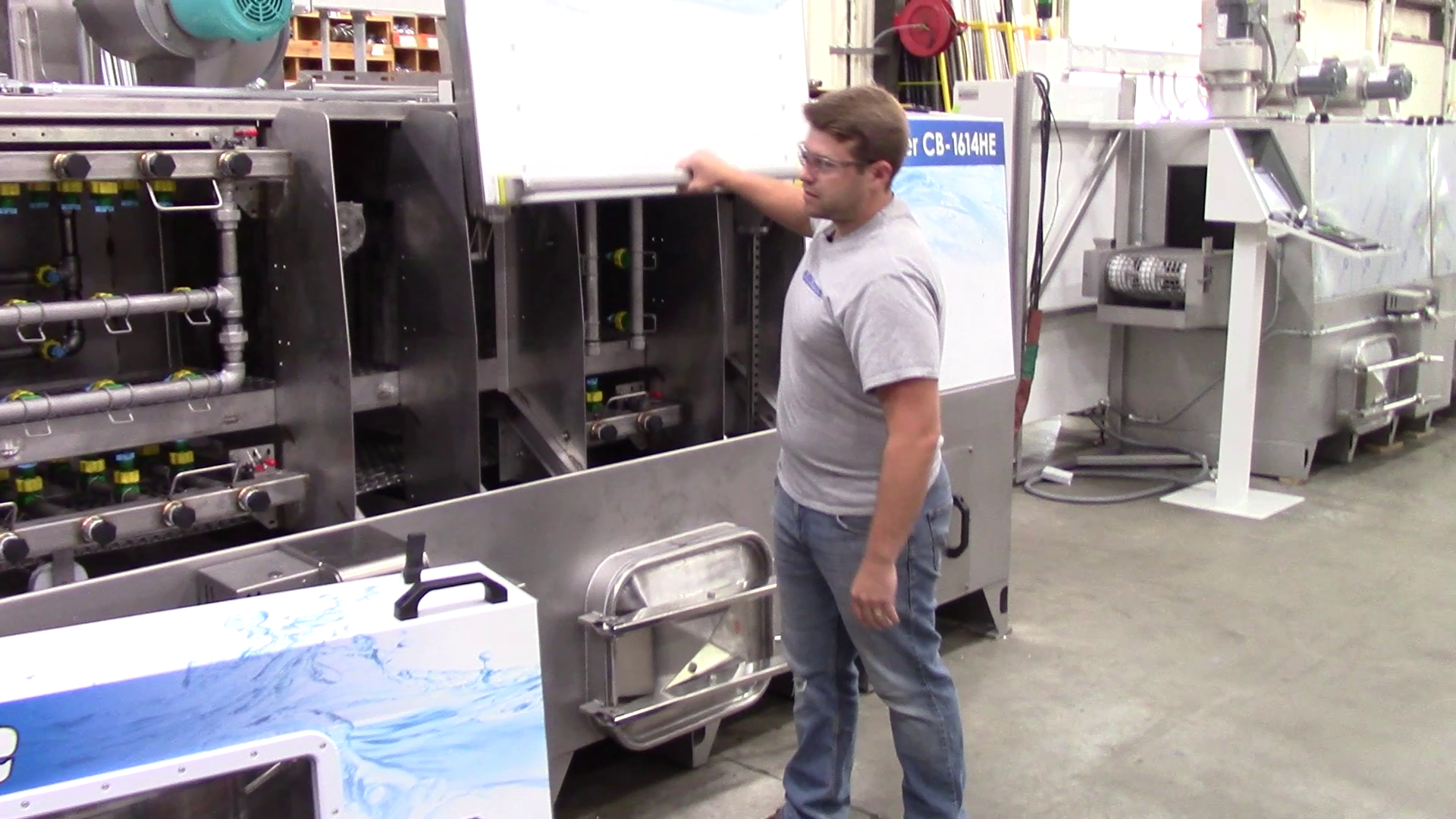

Maintenance access was a major focus of the HE Series design. Pull-out curtains, quick-release nozzles, stainless external plumbing, improved blower mounting, and lighter canopy designs all help reduce time spent servicing the machine.

The HE Series also includes updated blower support that allows the blower to be easily removed from the machine and shroud designs to reduce and operating noise.

All air knives utilize a more efficient air knife design featuring a removable orifice for quick and easy cleaning.

All primary spray bars can be rodded out without removing spray headers from the machine.

Advanced Controls and Monitoring

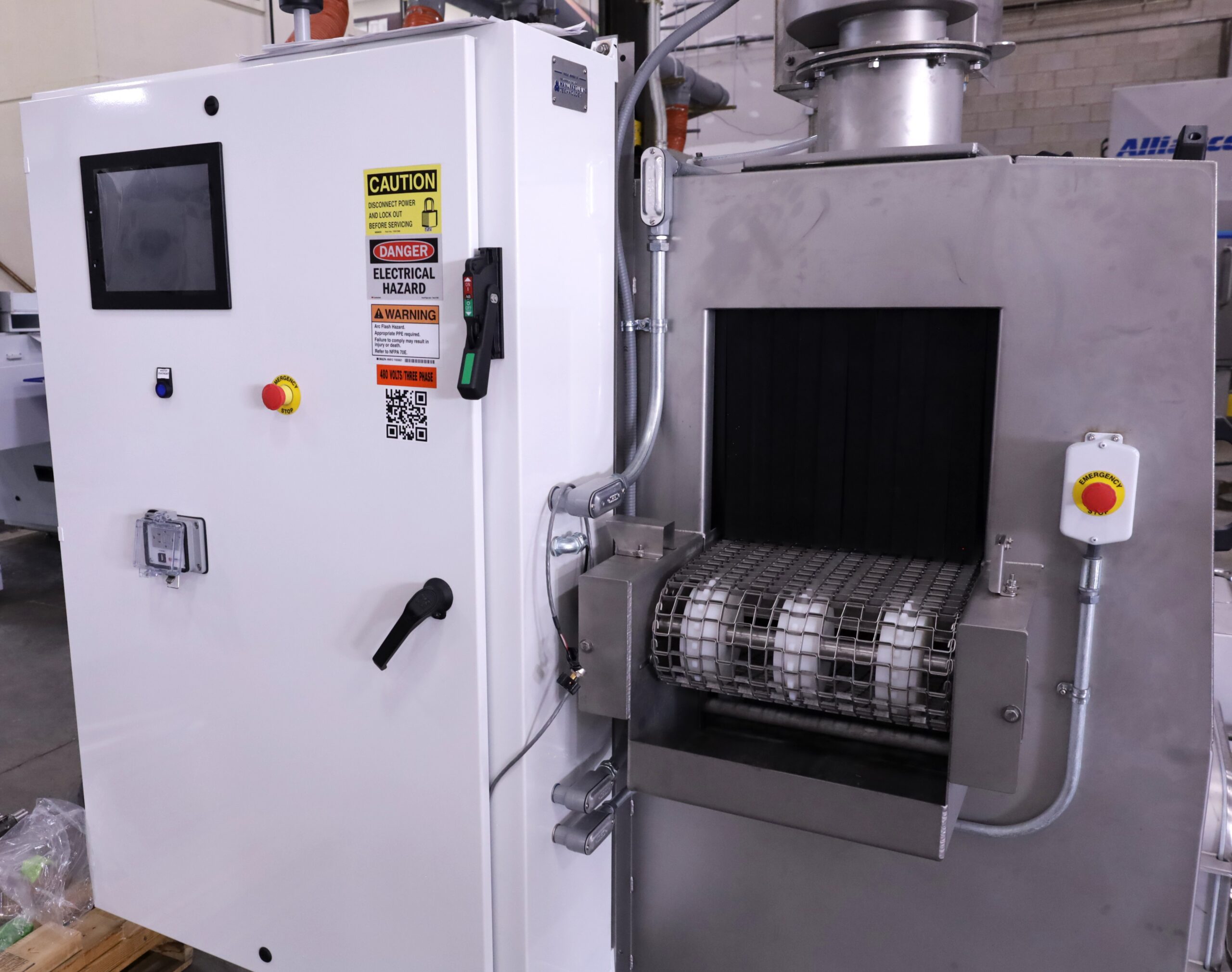

The HE Series features an upgraded controls package with a color HMI and improved machine feedback. Operators can more easily monitor machine conditions, water levels, fill cycles, and key operating functions from a central interface.

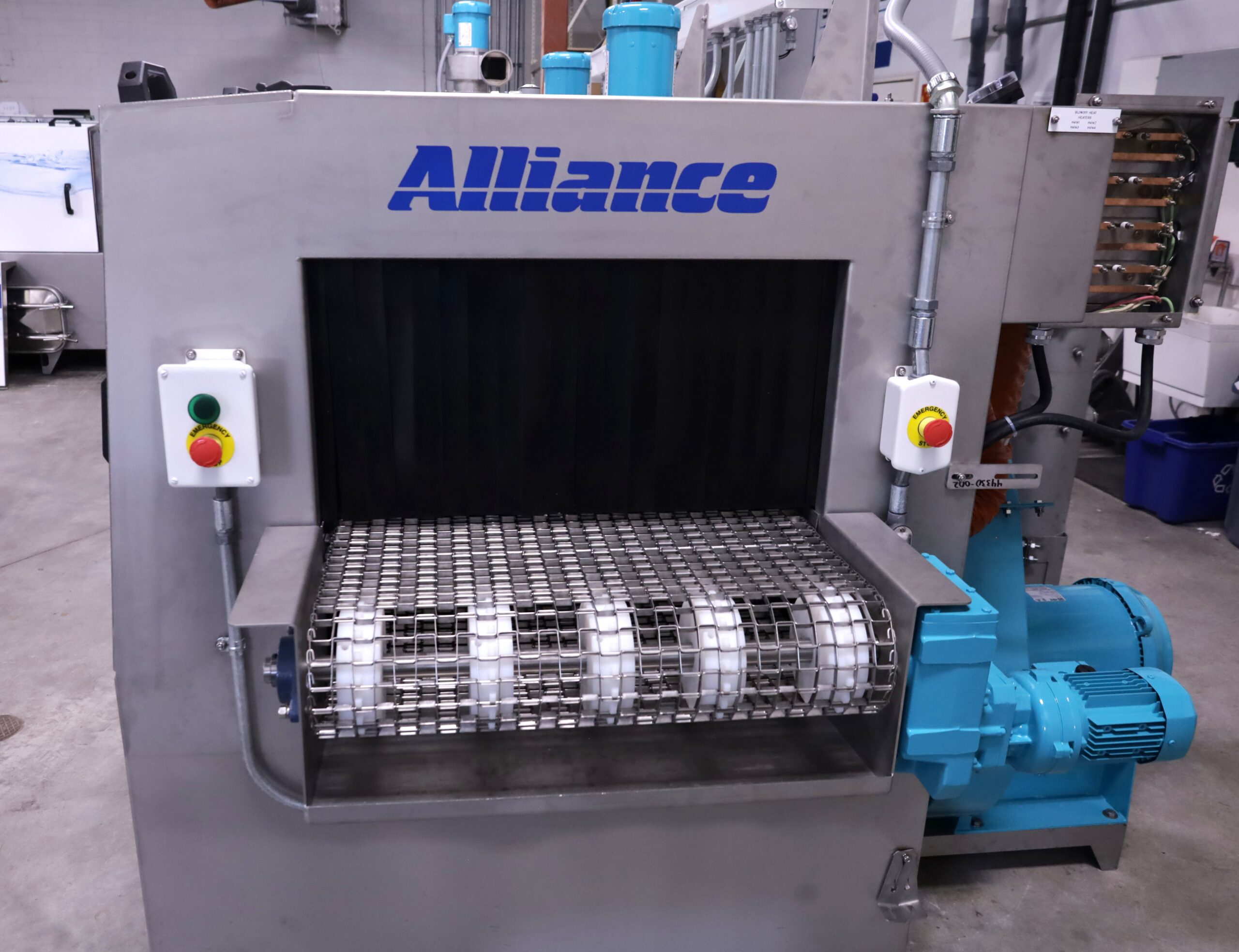

A new AC drive system with speed dependent active torque monitoring provides more consistent conveyor jam protection across the full speed range.

Built for Production Flexibility

The HE Series platform is modular and configurable for a wide range of cleaning applications. Options include:
