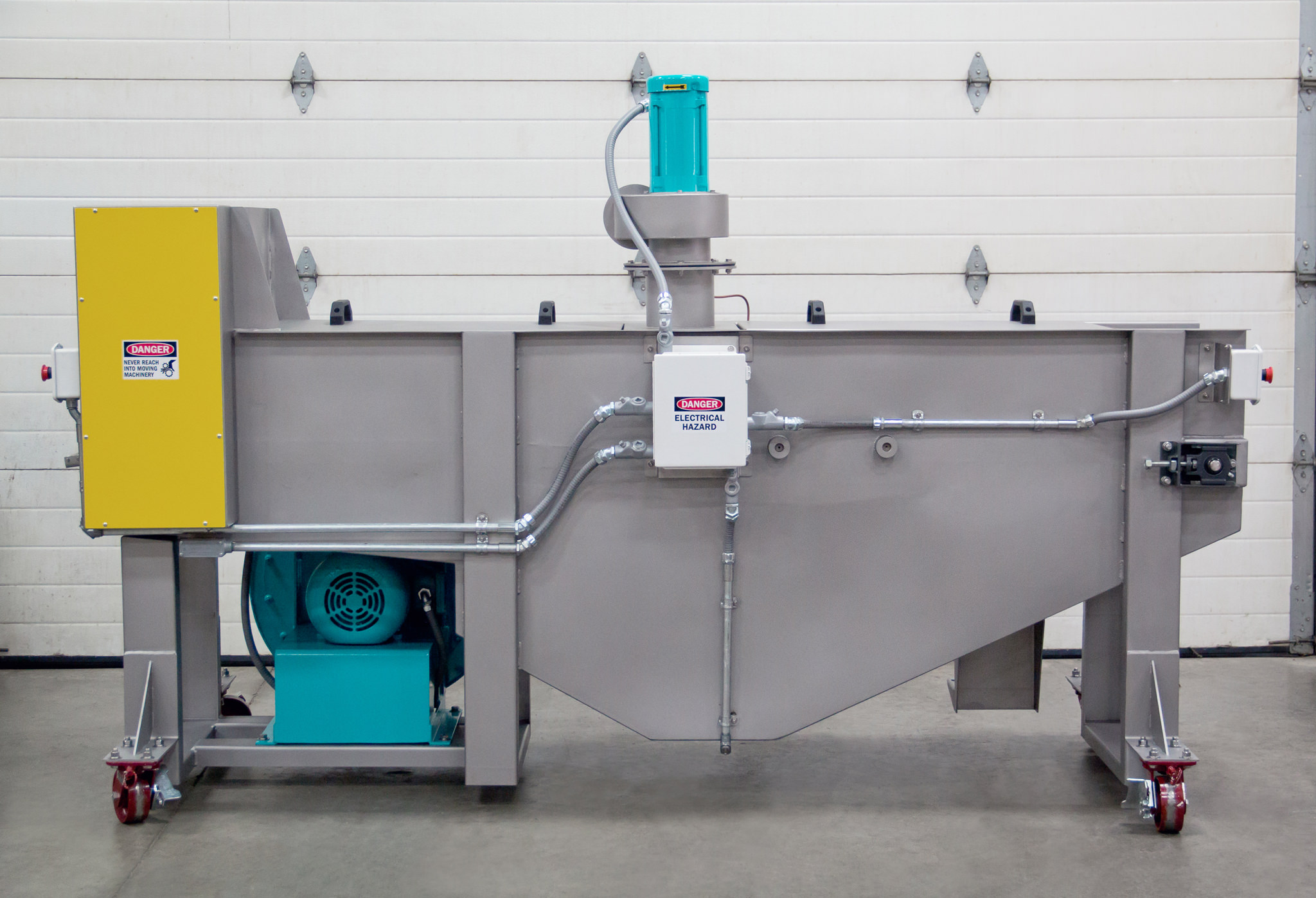

oil dip machine
  • Customer: Automotive OEM supplier of powdered metal parts

  • Item to Clean: Metal parts measuring 10” diameter x 2” tall

  • Contamination: N/A

  • Process Parameters: Rust inhibit dip

  • Cleanliness Required: N/A

  • Dryness Required: Gross amounts of rust inhibitor fluid removed

  • Production Rate: Not specified

  • Machine Type: Aquamaster CB-1200E (Conveyorized Belt)

Customer Background

The customer is a designer and manufacturer of powdered metal parts for the automotive OEM industry. The company has multiple locations in the United States. A sampling of their products includes camshaft sprockets, pinions, gears, crankshaft sprockets, clutch assemblies, magnetic actuators, and bearings.


The customer needed a machine to dip manufactured parts in a rust-inhibiting oil for long-term storage purposes.

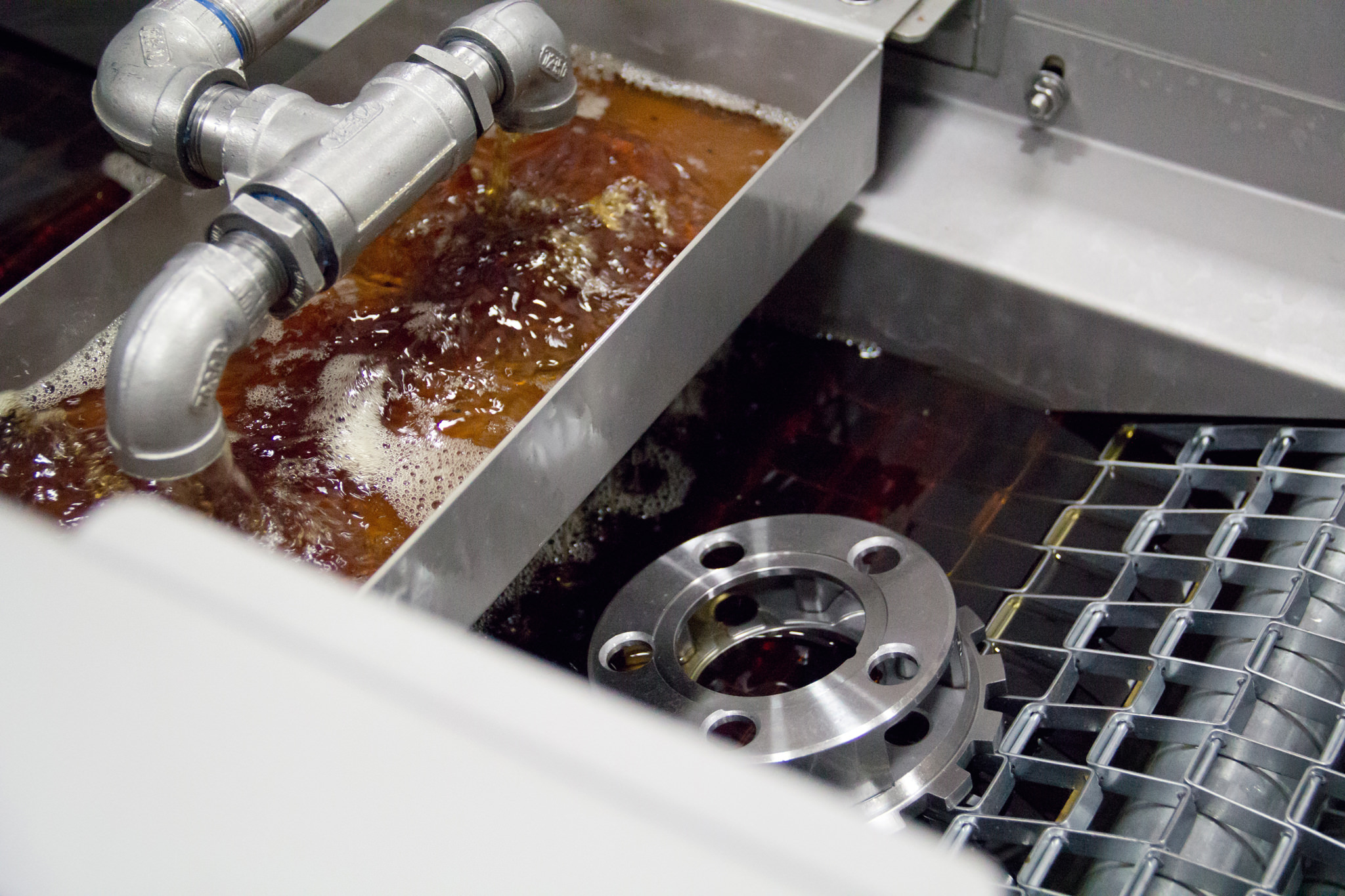

oil dip for metal parts

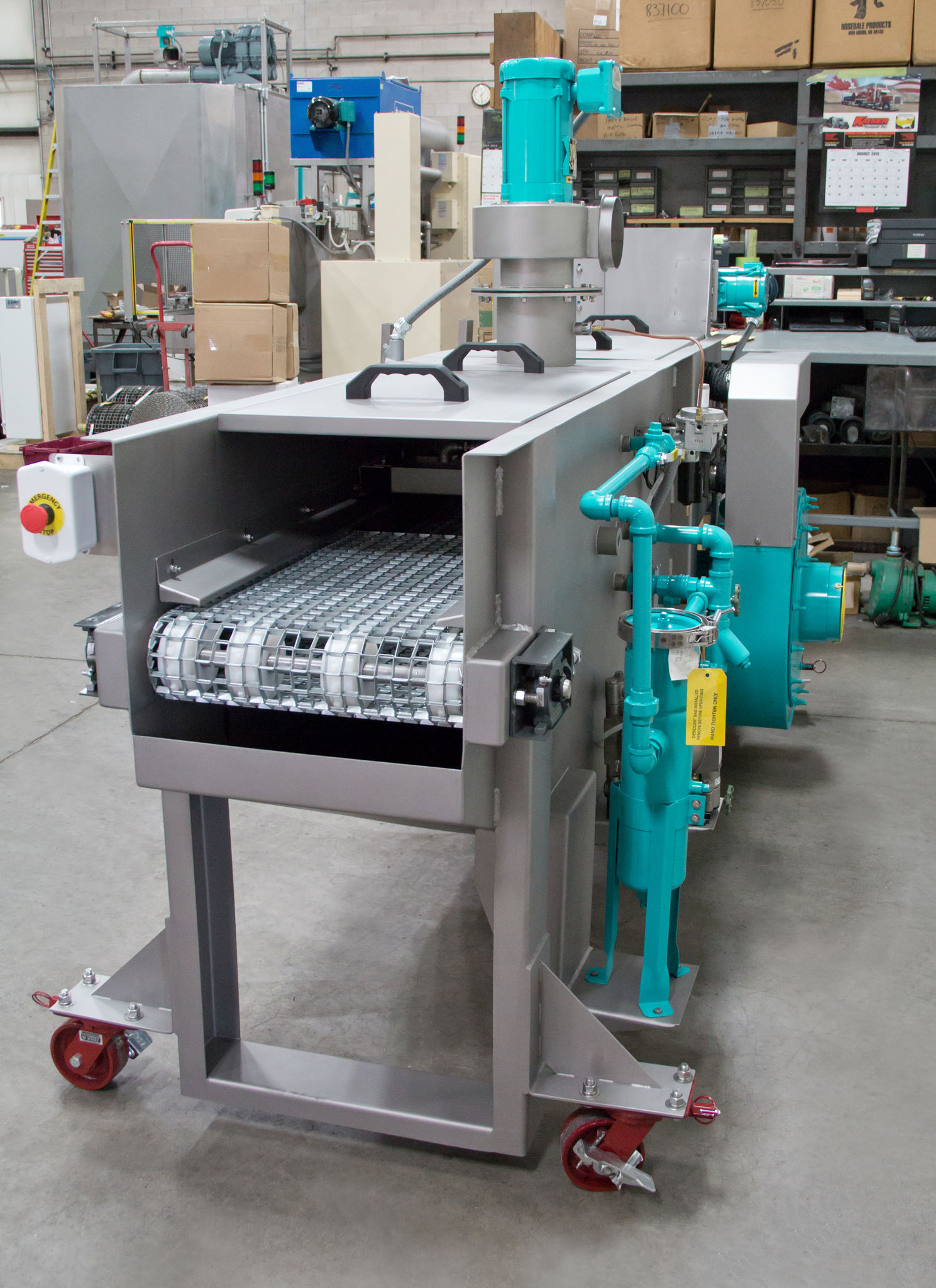

Alliance provided an Aquamaster CB-1200E conveyorized dipping system for applying oil for long-term rust protection. Machined powdered metal parts are placed directly on the flat wire conveyor belt.  In the center of the machine, the conveyor belt dips into a shallow catch pan, allowing the underside of the parts to be coated with oil.  As the parts pass the dip area, rust inhibiting solution is pumped to a perforated oil flood box above the conveyor where oil is dispensed onto parts as they pass underneath. Oil is then captured, filtered, and recirculated for continued use. Parts pass under a blowoff module to remove excess oil. An explosion-proof motor and wiring were included for safety. The electrical panel was designed for remote mounting at a minimum of 10 feet from machine. Lift-off removal panels on top of the machine allow quick access for viewing and maintenance. The exit area of the conveyor included a gravity roller, which can be mated with a parts accumulation table or mating escapement conveyor. Casters were added to the base for mobility.

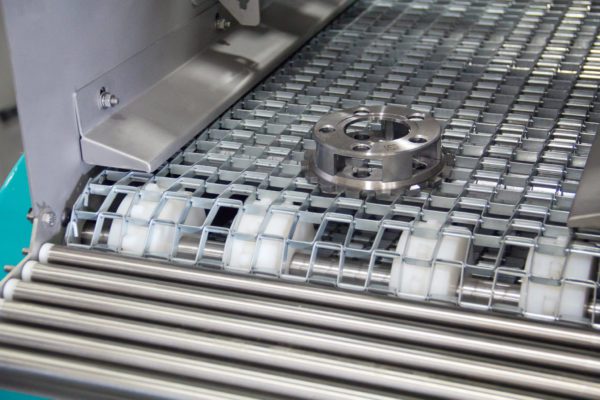

metal parts on conveyor belt
