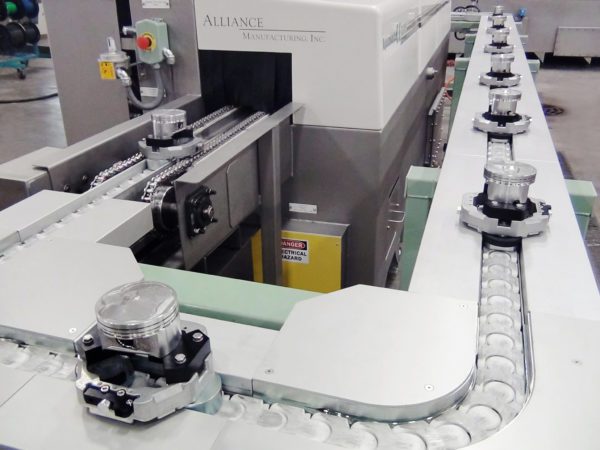

parts washer for pistons
  • Customer: Manufacturer of precision aluminum automotive engine components

  • Item to Clean: Aluminum pistons on pallets

  • Contamination: Coolant

  • Process Parameters: Wash, rinse, heated blowoff

  • Cleanliness Required: Visually clean and spot-free (high-quality water necessary for spot-free)

  • Dryness Required: 100% dry, approximate exit temperature 100°-110° F

  • Production Rate: 10 seconds per part

  • Machine Type: Aquamaster CC-1200E (Conveyorized Chain)

Customer Background

The customer is a manufacturer of precision aluminum engine components for a major automobile manufacturer. They produce pistons, cylinder heads, water passages, lower blocks, knuckles, and transfer cases.


The customer needed a parts washing system to remove coolant from varying sizes of aluminum pistons at a rate of 10 seconds per part.  The pistons were to be cleaned in process while being carried on a palletized conveyor system.  Parts also needed to be 100% dry upon exiting the parts washer.

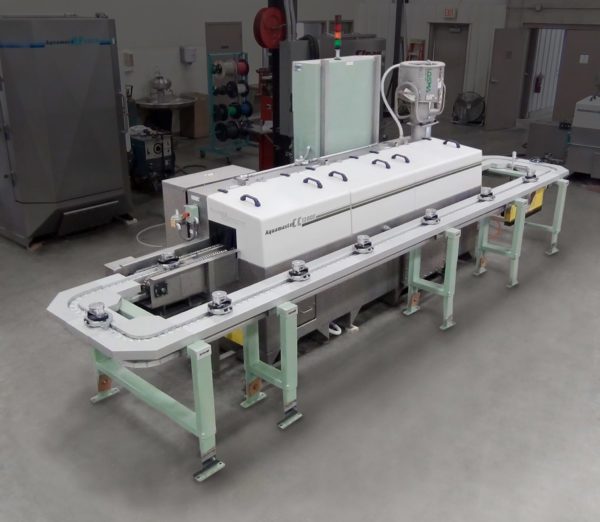

piston part washer


Alliance provided an Aquamaster CC-1200E dual chain industrial parts washer with wash, rinse, and heated blowoff modules, designed for cleaning palletized parts. The system was designed to integrate with a single-strand flex tabletop chain conveyor.  Parts are positioned on a pallet and are shuttled to various manufacturing cells for a different machining operations.  A handshake interface automatically transfers the soiled pallet and part onto the Alliance conveyor system for cleaning. Palletized conveyor systems are typically a tabletop style conveyor that is not suited for travel through a washing station.   The conveyor in the Alliance pallet cleaning system is designed specifically for handling the wash solution.  This system effectively contains the water, which minimizes drag-out and directs the fluid for proper filtering and recirculation. Product guides within the cleaning system keep the pallets centered as they are washed and dried. A customer-specified paint color was included.
