Customer: Manufacturer of aluminum castings
Item to Clean: Machined cast aluminum lower engine block assembly
Contamination: Machine coolant and chips
Process Parameters: Wash and blowoff
Cleanliness Required: Visually clean
Dryness Required: Minimal amounts of residual moisture acceptable
Production Rate: Not specified
Machine Type: Aquamaster CC-2400E (Indexing)
An established North American manufacturer of cast aluminum components with value-added machining and assembly capabilities for automotive and related industries.
The customer needed a conveyorized parts cleaning system to process machined aluminum lower engine block assemblies for a major automotive manufacturer. Requirements included cleaning multiple holes and passages present on the part, which were to be introduced on 30 second intervals. In addition, the machine needed to be integrated into an automated manufacturing cell, interface with automated loading and unloading equipment, fit within limited floor space, and meet the customer’s specific machinery requirements. The machine also needed to accommodate manual loading and unloading of parts.

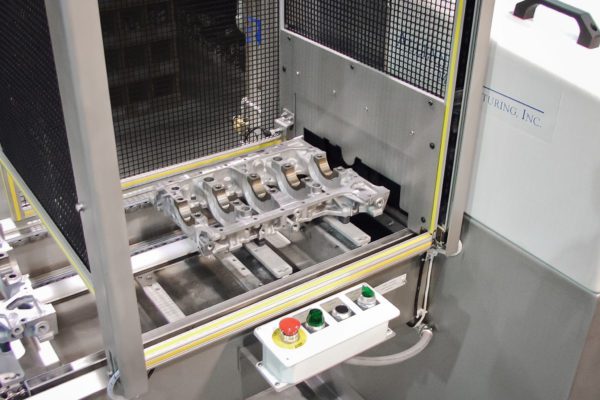

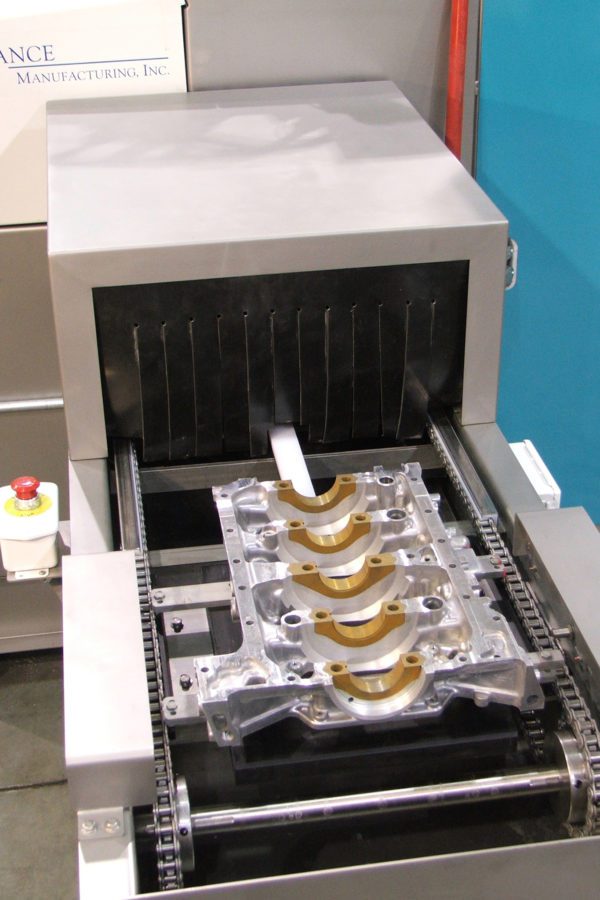

Alliance provided an Aquamaster CC-2400E indexing conveyorized parts cleaning system with wash and regenerative blowoff modules. Custom part fixtures, engineered for positioning parts to optimize cleaning and moisture removal, were utilized in conjunction with strategically located spray nozzles, compressed air ports, and sensors to ensure precise transfer throughout the process. The entry and exit conveyors were equipped with operator controls to allow for manual part loading and unloading. The machine utilized a customer-specified PLC and operator interface control panel.
