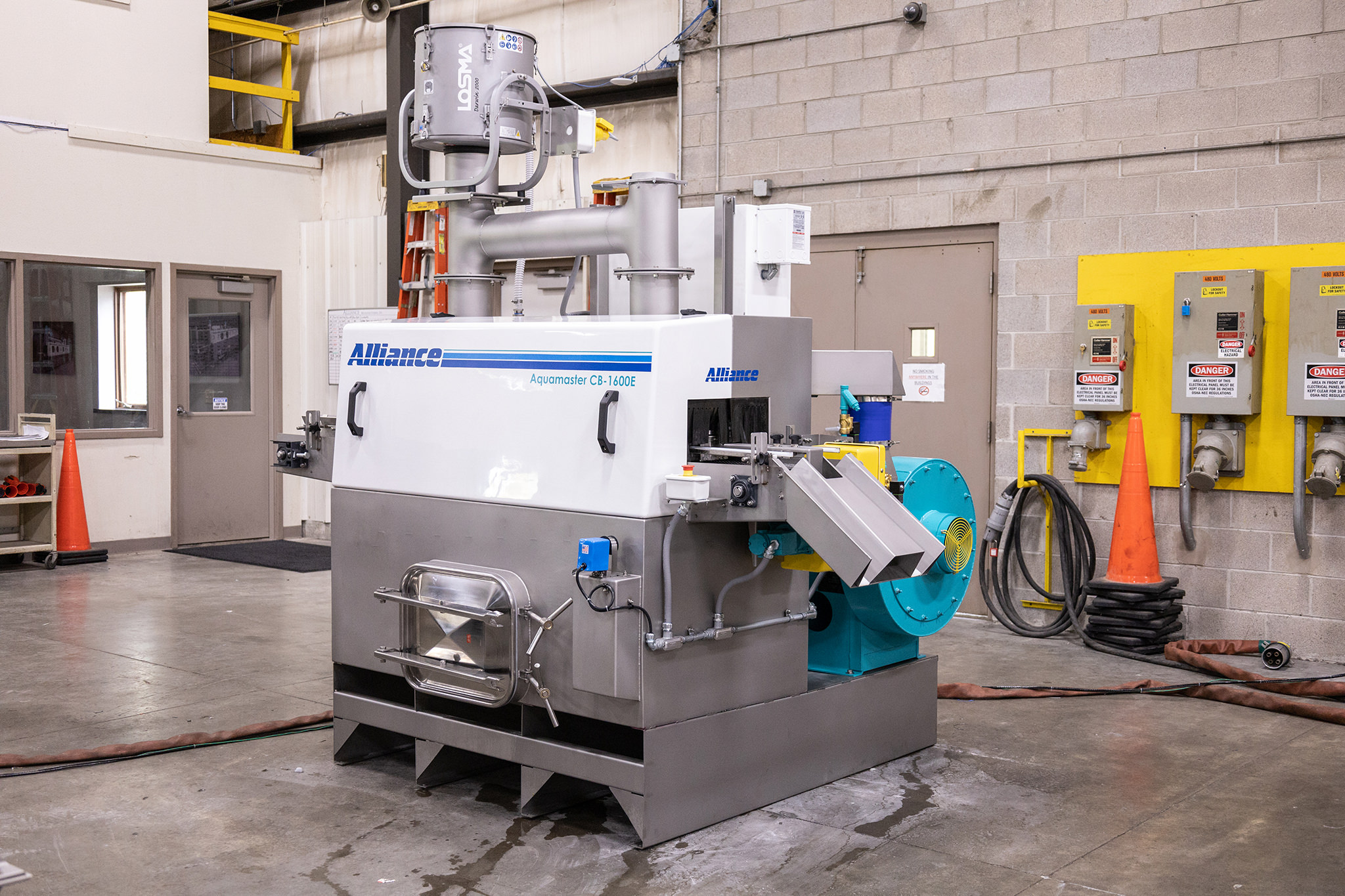

Aquamaster CB-1600E
  • Customer: Manufacturer of fuel dispensing products

  • Item to Clean: Gasoline pump handles

  • Contamination: Soluble machine coolant, chips

  • Cleanliness Required: Visually clean

  • Dryness Required: As dry as possible with ambient blow-off

  • Production Rate: 4-6 parts per minute

  • Process Parameters: Wash, ambient blow-off

  • Machine Type: Aquamaster CB-1600E (Conveyorized Belt)

Customer Background

The customer is a manufacturer of various types of fuel dispensing products, including gasoline/diesel pump nozzles, fuel hoses, swivels, and breakaway devices.


The customer needed a cleaning system to remove soluble coolant and chips from gasoline pump handles. The cleaning operation is done prior to assembly, and the products needed to be visually clean and mostly dry to be ready for the next manufacturing operation.

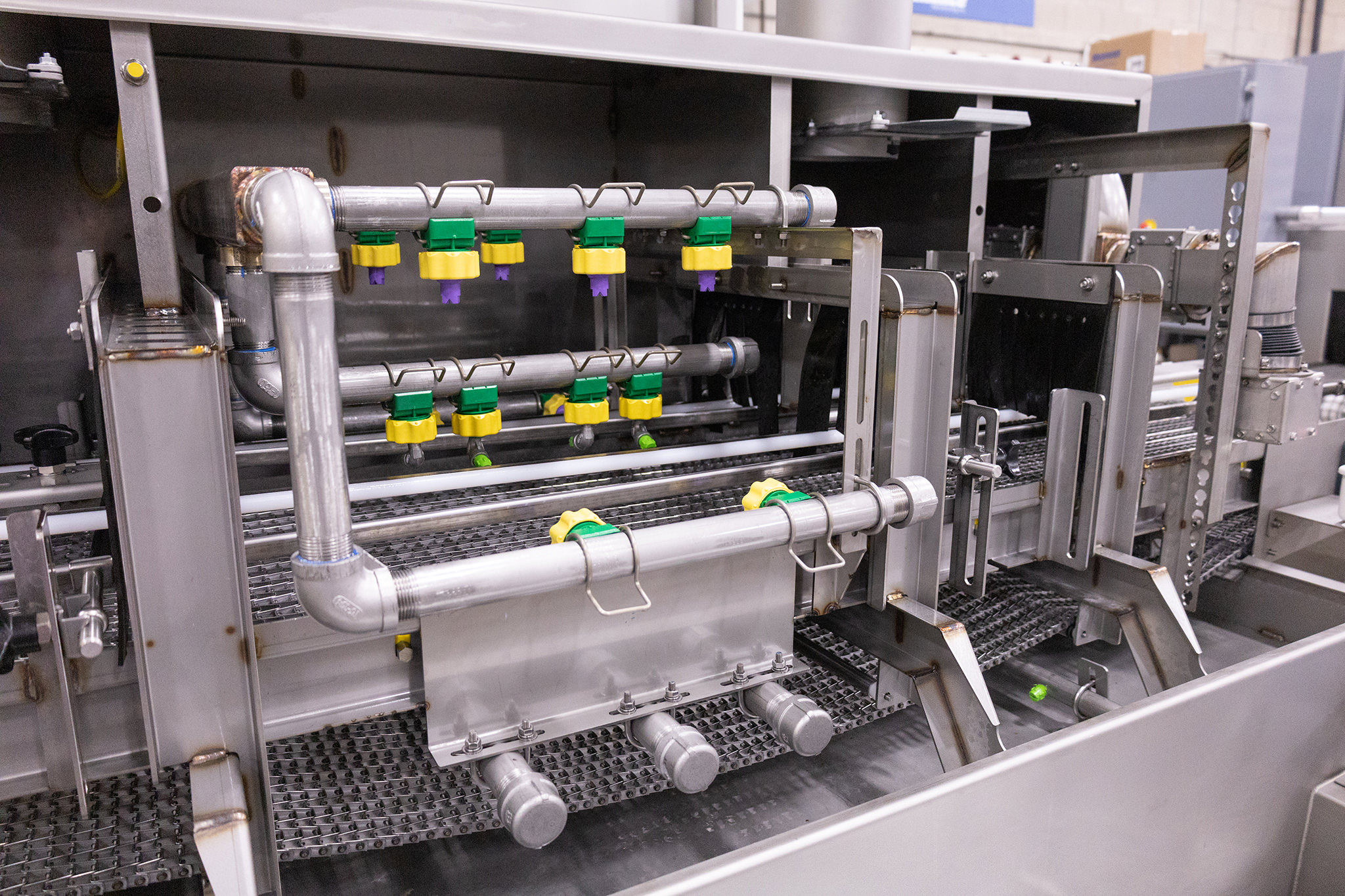

Spray nozzles in the Aquamaster CB-1200E


Alliance provided an Aquamaster CB-1200E dual-lane conveyor belt parts washer. The machine was designed to allow for communication with a robot for placement of the pump handles onto both conveyor lanes. Adjustable part guides were designed to center the pump handles on the conveyor and keep them in position for cleaning. At the unload end, segregated unload chutes were added to drop the cleaned parts into a bin. A micro-filtration chamber was added to remove particulate from the wash solution and a 1″ oil skimmer was also added to keep the solution free of oils. A mist collector was included to return condensation back to the tank.

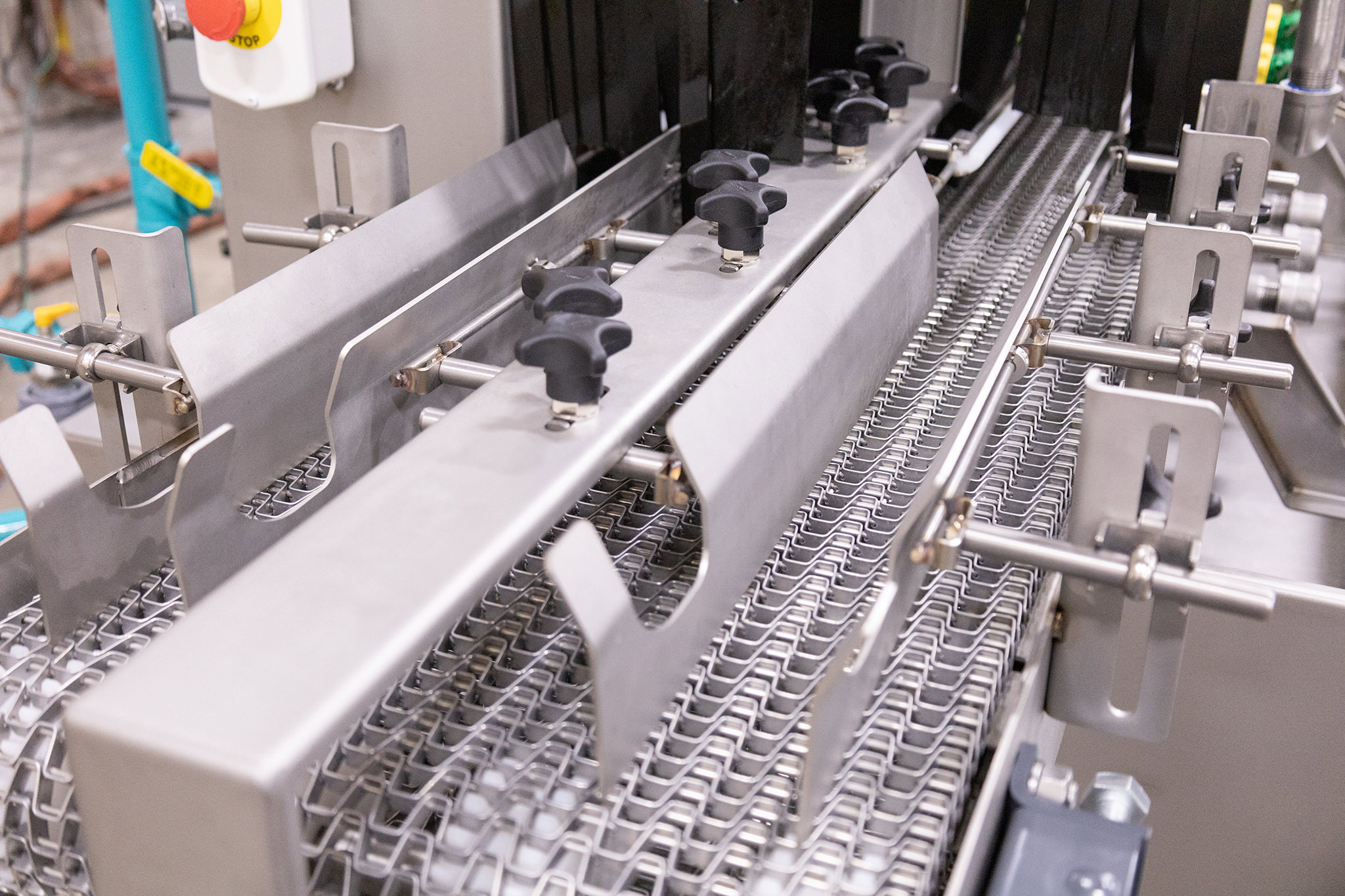

dual-lane conveyor belt

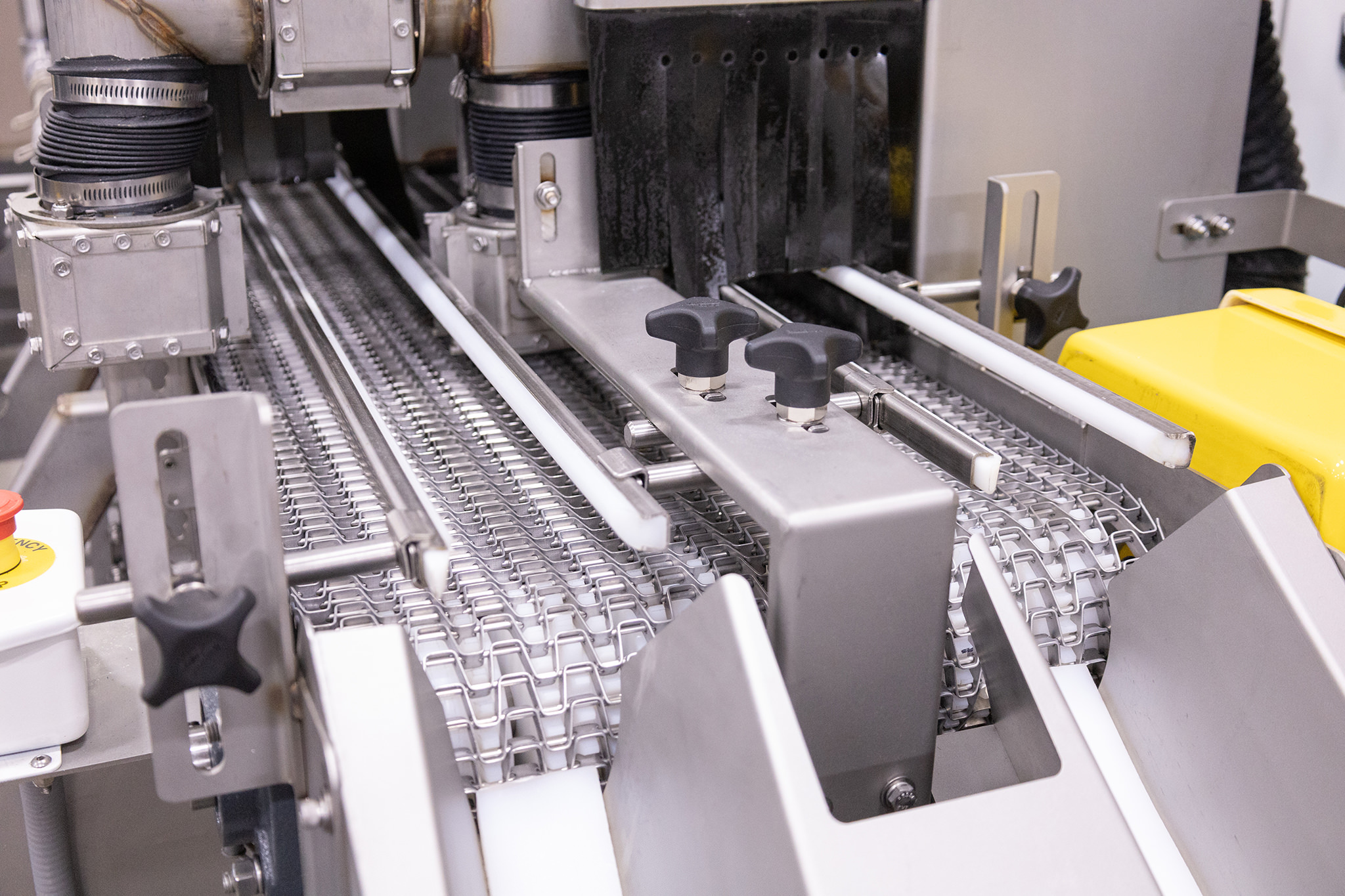

segregated unload chutes
