Aquamaster CI

The Aquamaster CI conveyorized indexing parts washers are designed for applications which require critical cleaning of parts with specific features such as blind holes, passageways, hidden cavities, and sensitive surfaces. Indexing wash systems are intended for use in high-volume manufacturing cells and production lines.

(Read more below)

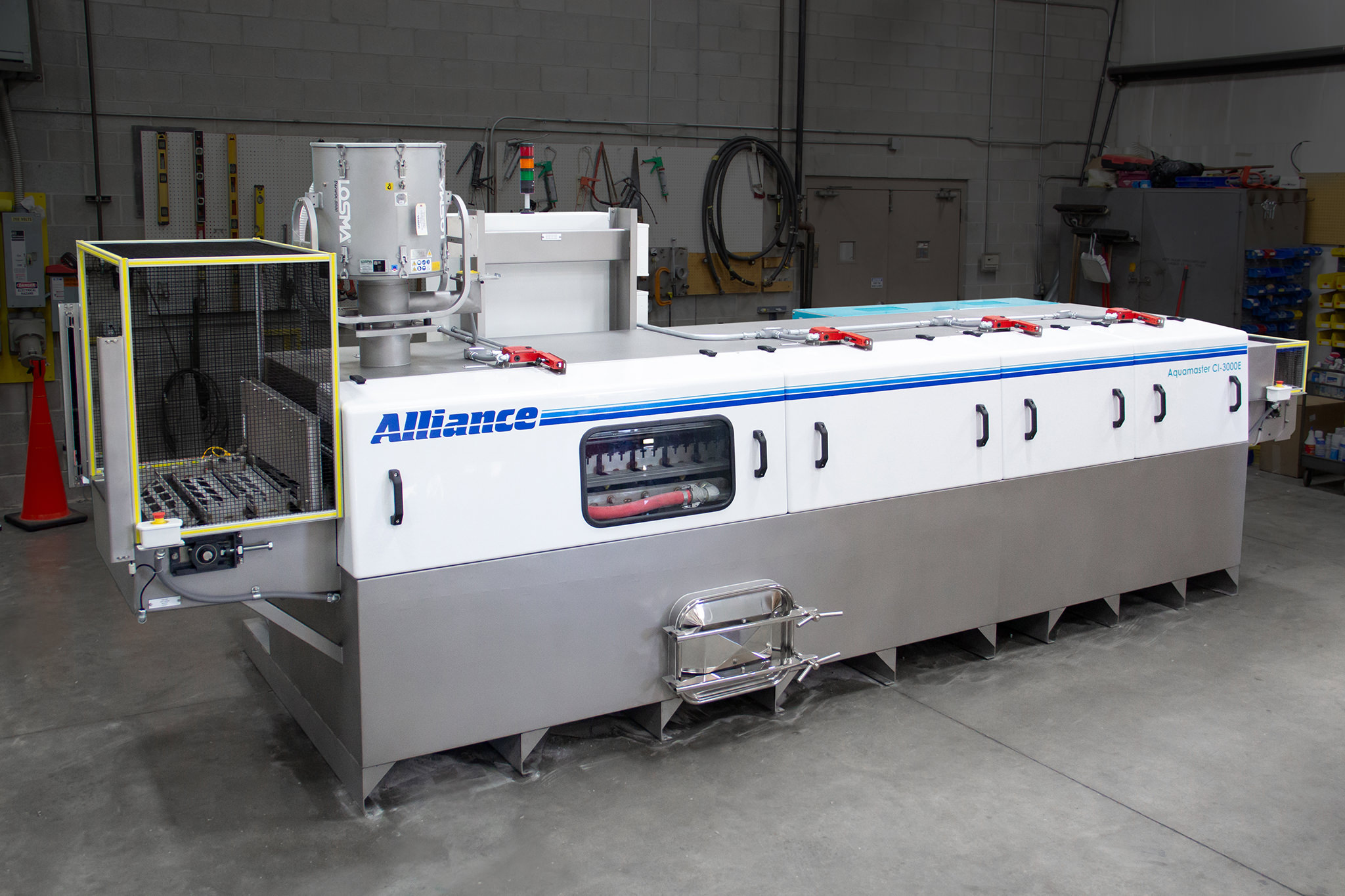

Indexing washer with profile plate for automotive parts

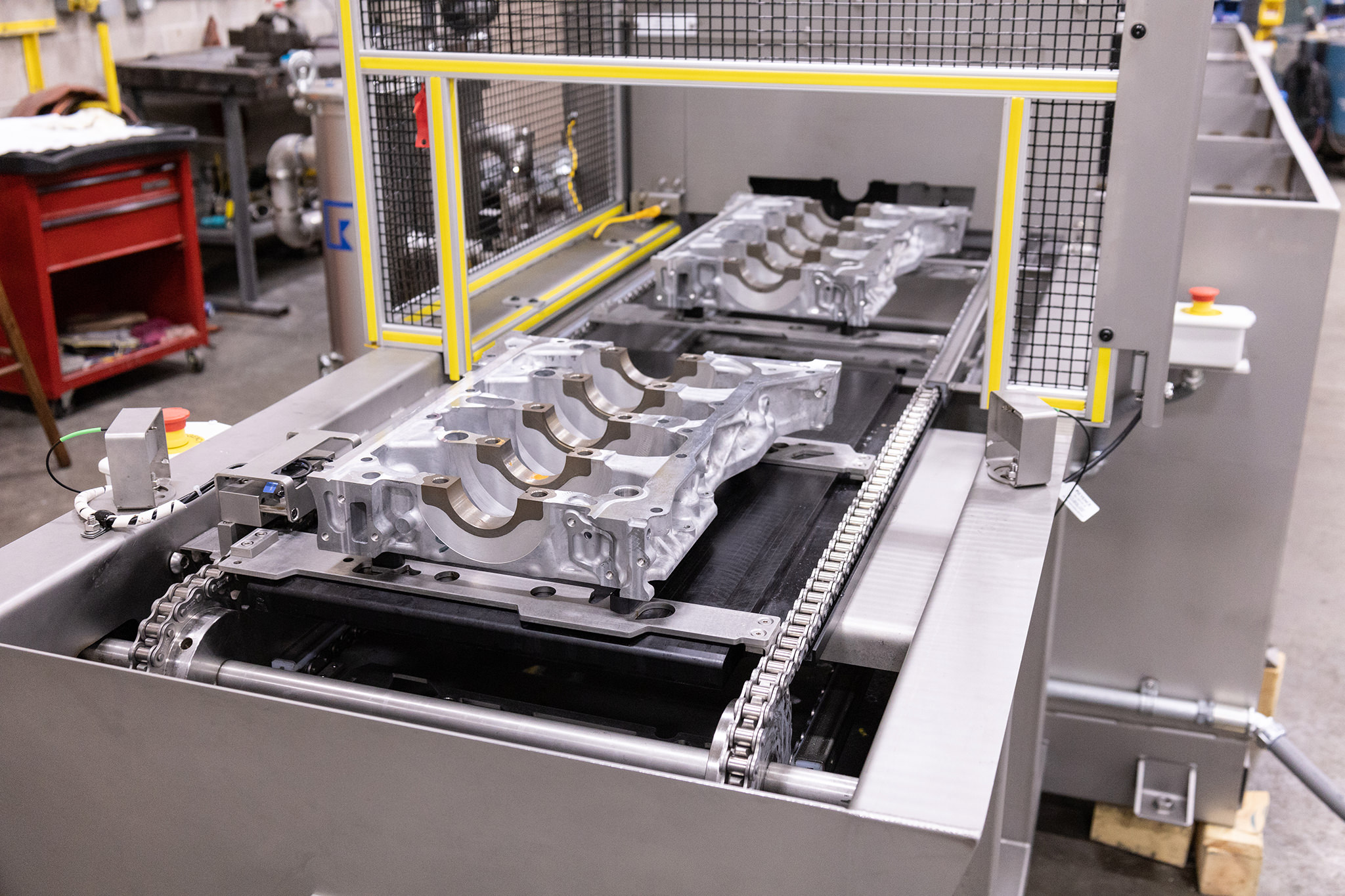

Parts washer for engine crankcase
Parts washer for engine crankcase
Applying rust preventative to steel pistons
Rust prevention for steel pistons
Operator loading steering knuckle on an indexing washer
Indexing parts washer with cooling module
Targeted spray nozzles in a parts washer

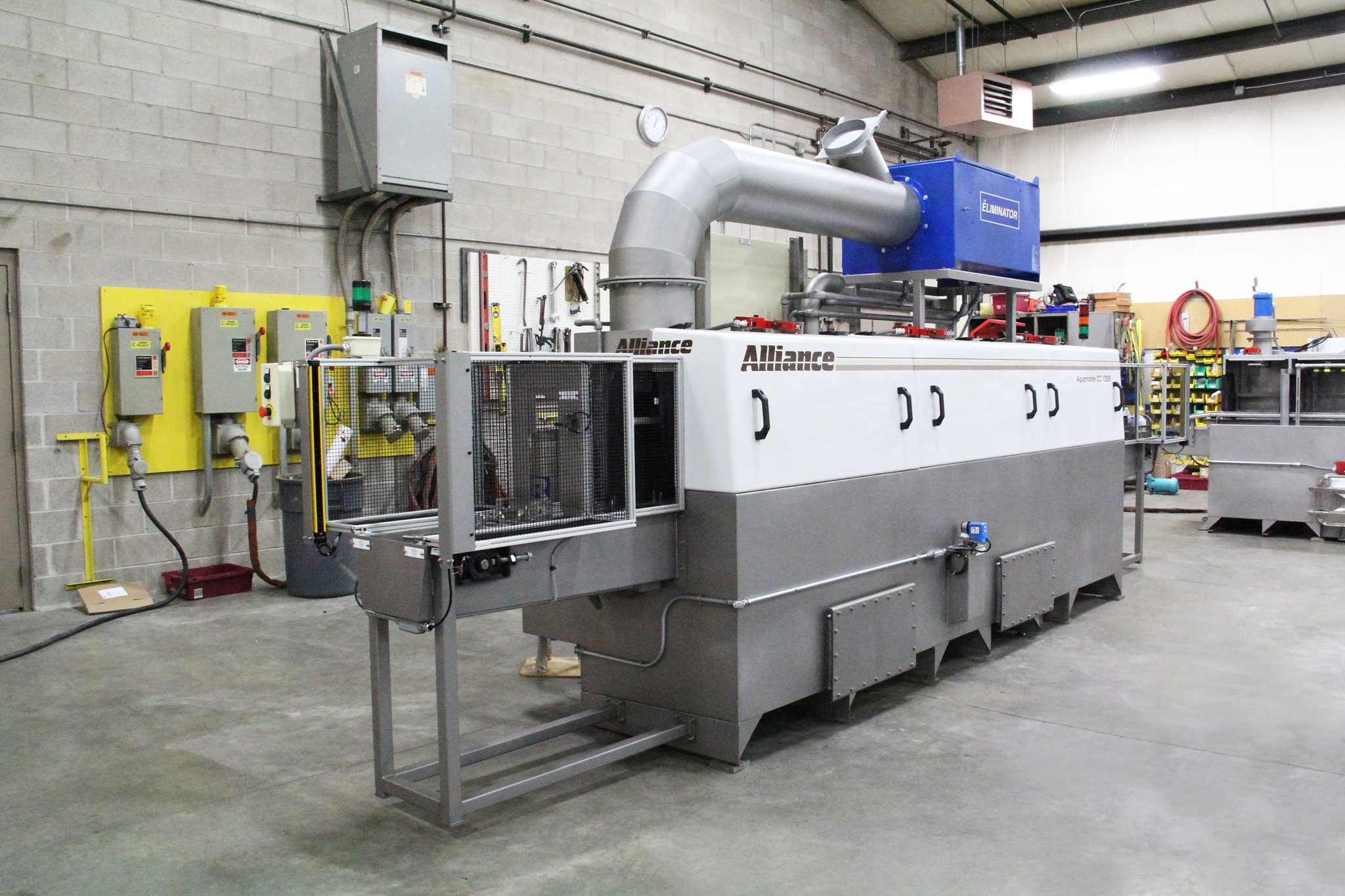

Industrial washer system for General Motors oil pans
Industrial washer system for Chrysler front engine cover

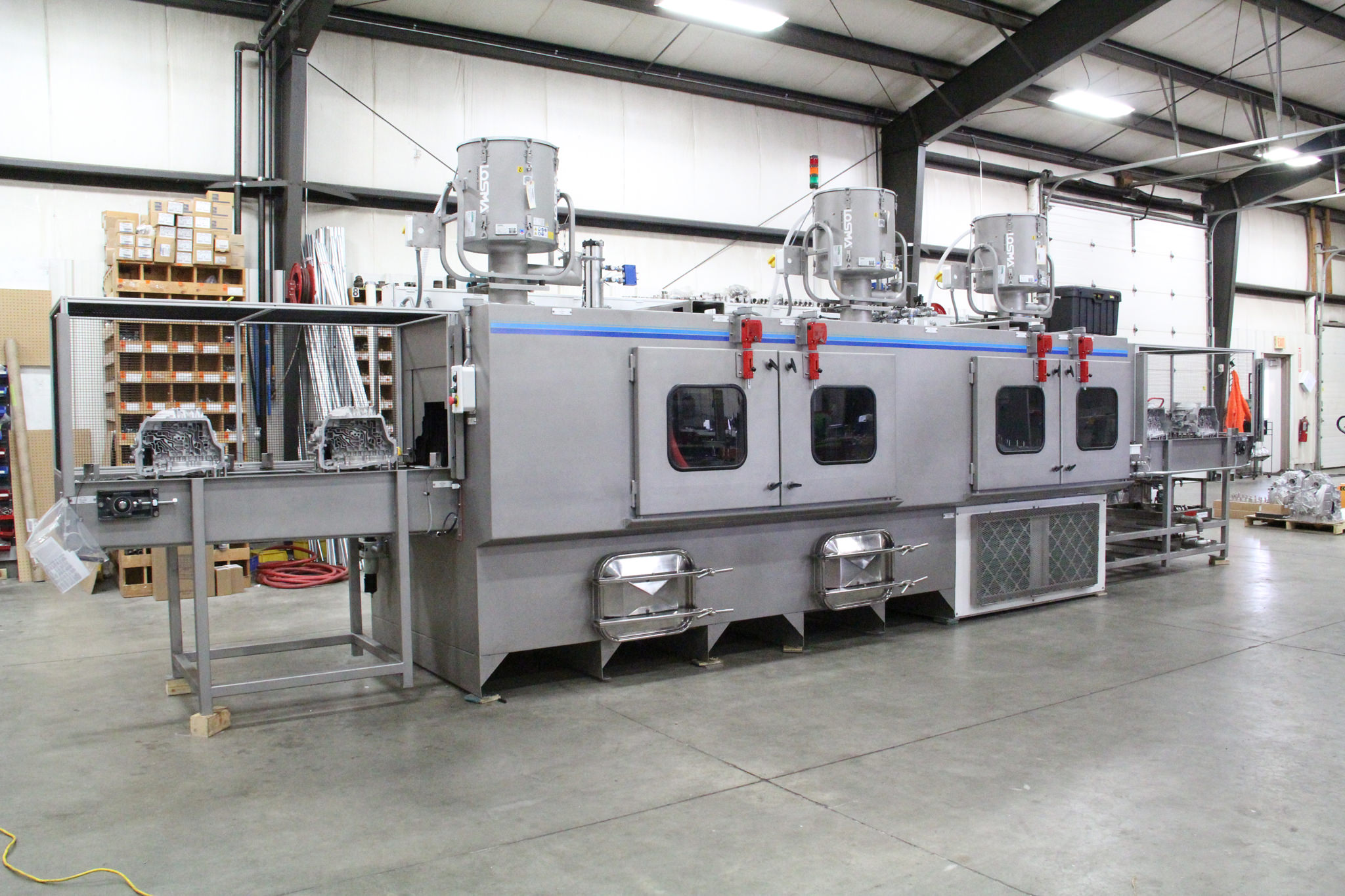

Parts washer for Ford transmission case

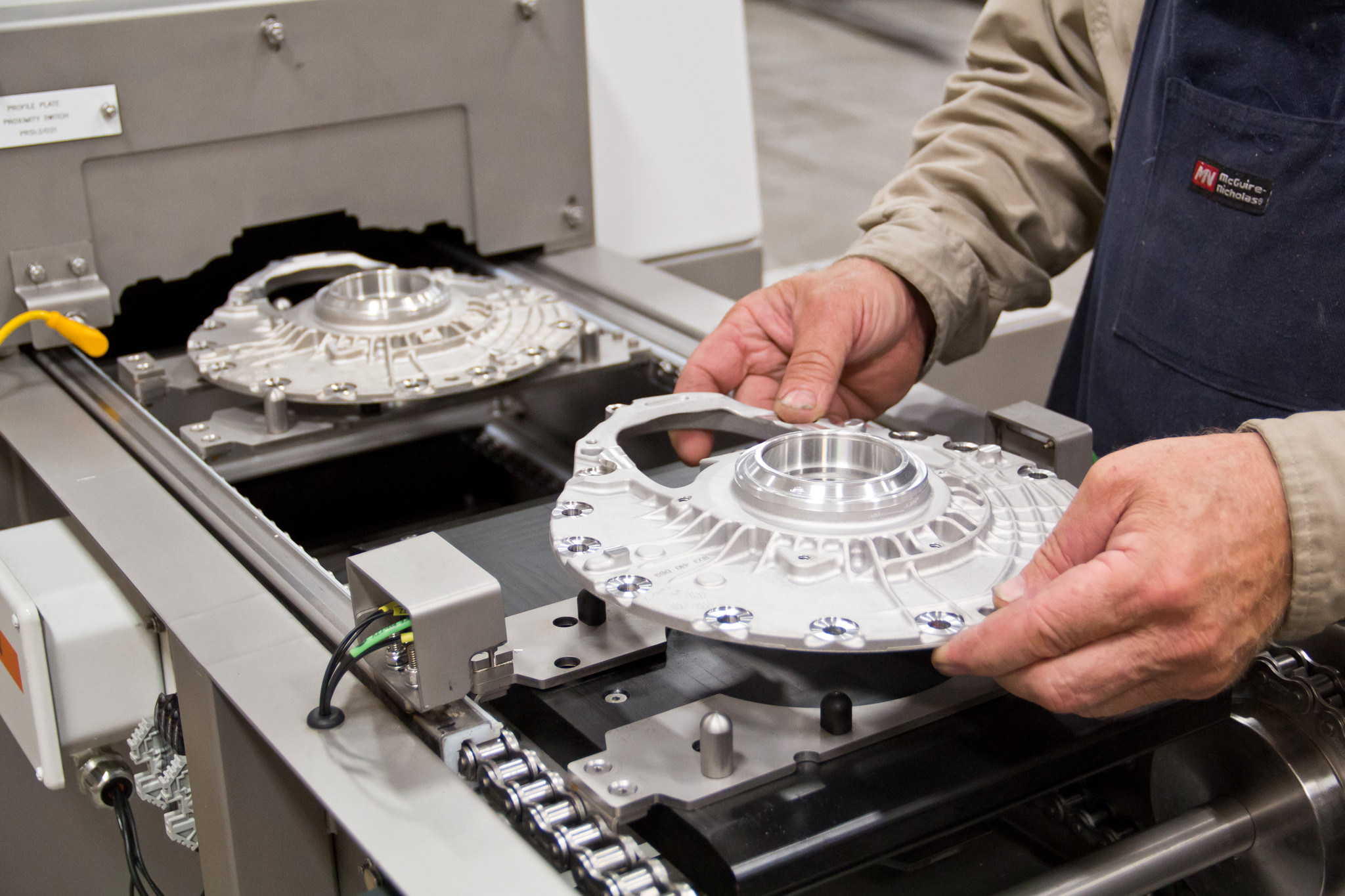

Indexing washer for transmission components
Indexing washer for transmission components
Cleaning sun gears on an indexing parts washer
Washer for volume cleaning of food industry products

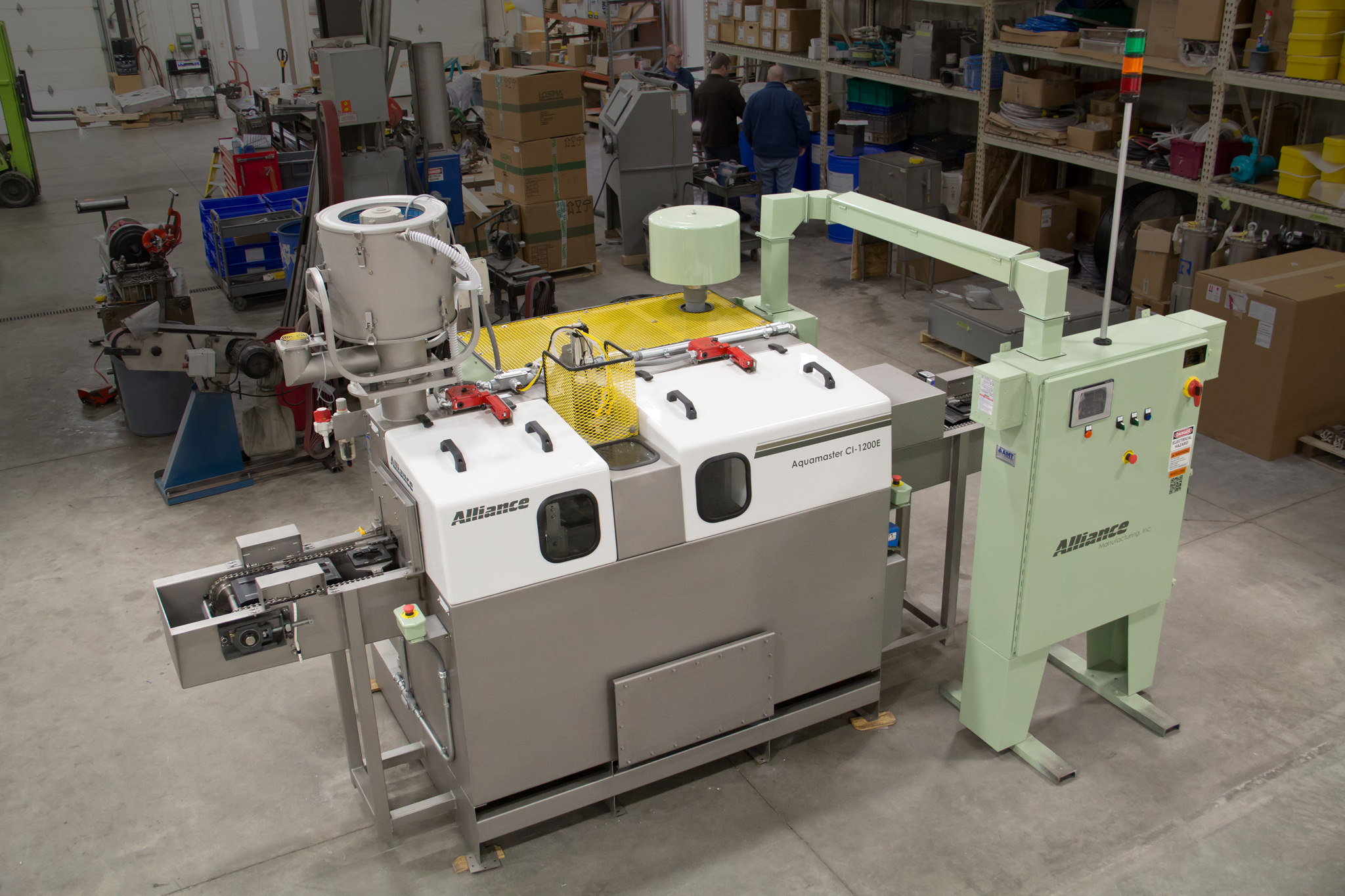

Piston washer for automotive manufacturers

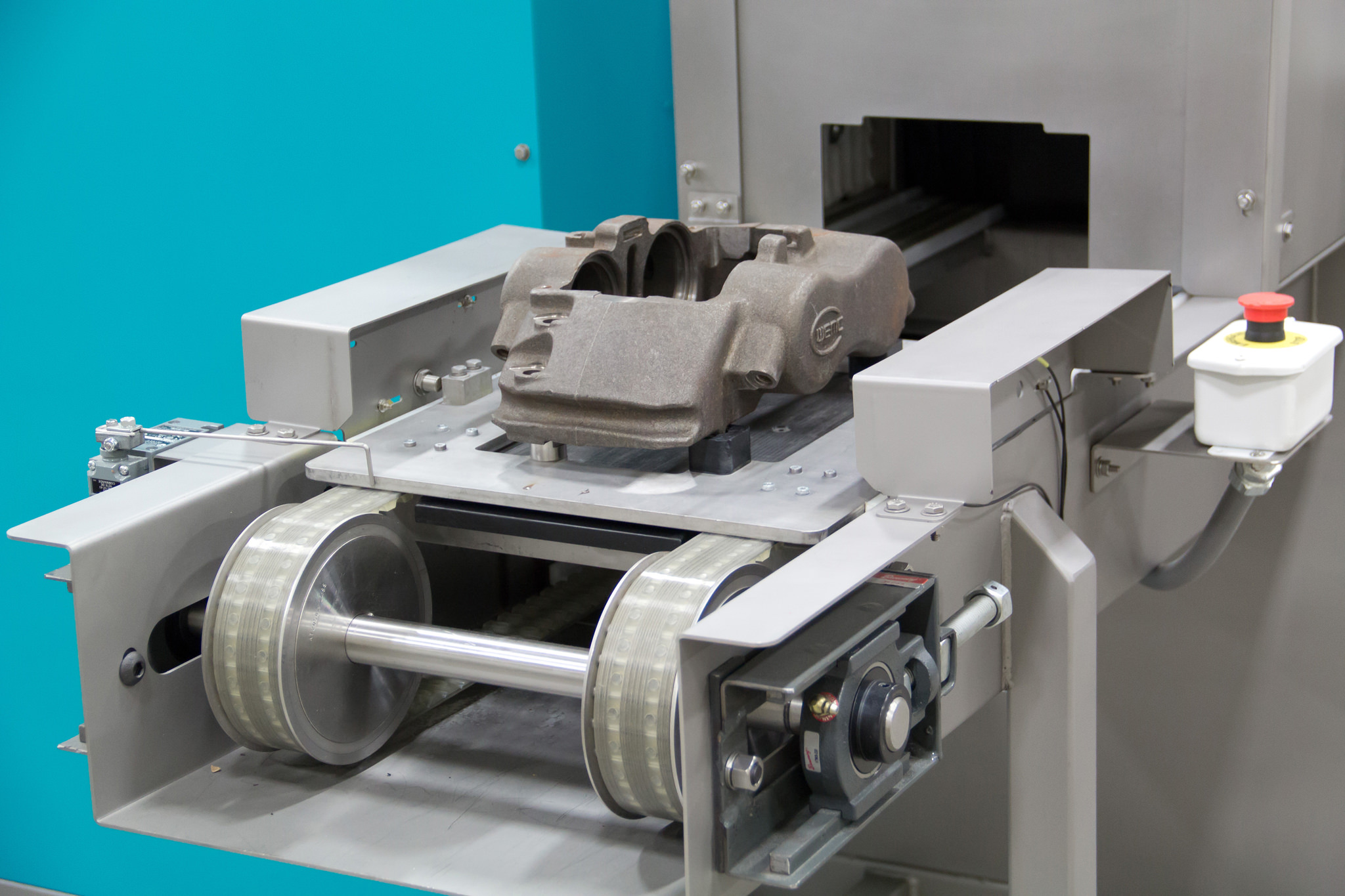

Piston washer for machined brake caliper
Piston washer for machined brake calipers
Oil pan parts washer
Automated cleaning of aviation crankshafts
Automated cleaning of automotive camshafts

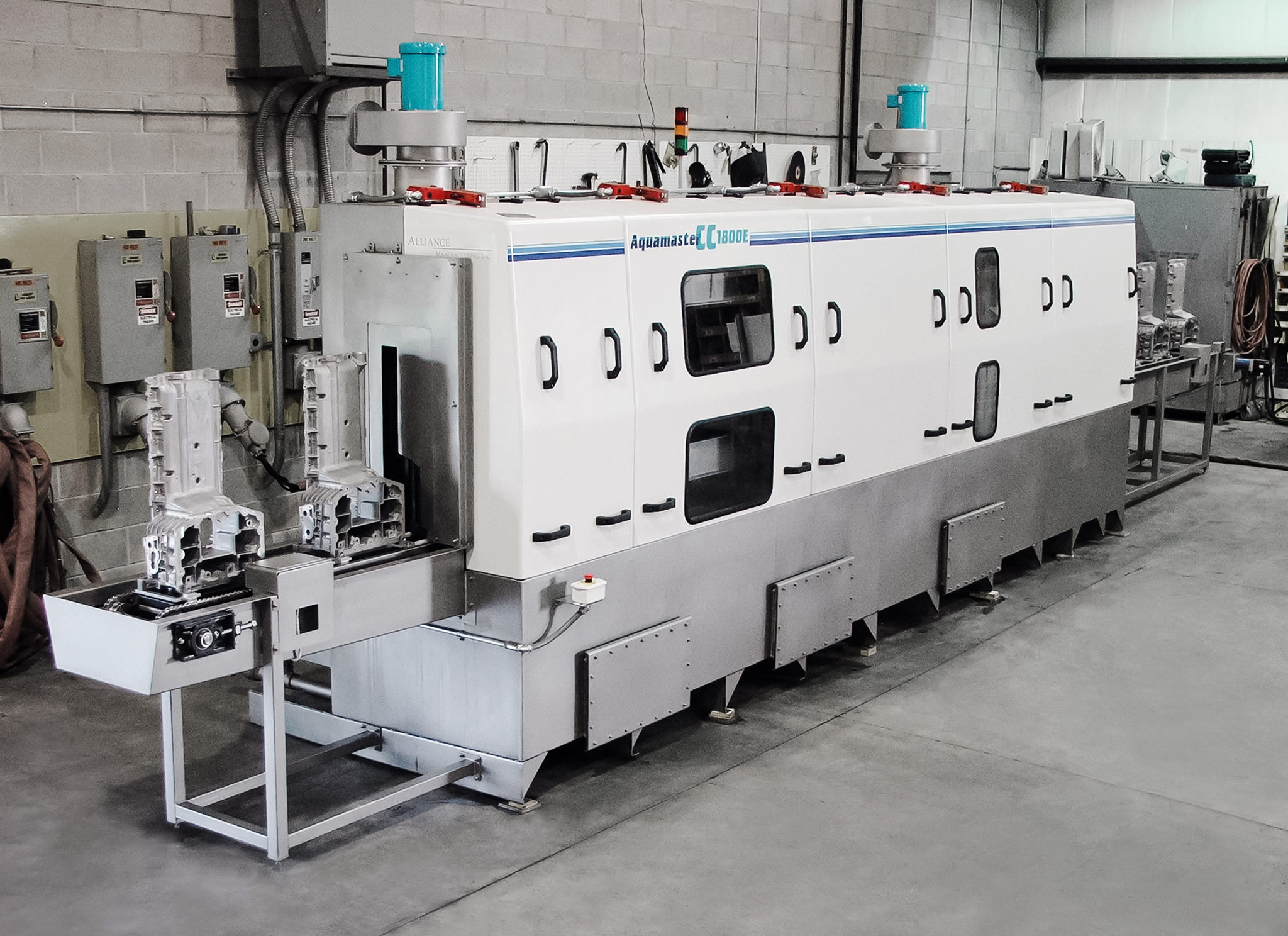

Inline part washer for large oil pans
Cleaning components for diesel engines
Washing and drying rotors and housings
System for cleaning cast manufactured parts
Cleaning carburetors in an automated parts washer
Inline washer for knuckles and automotive components
previous arrow
next arrow
Indexing washer with profile plate for automotive parts - Aquamaster CI-1800E (#872)
ArrowArrow
Slider

Request a Quote

Let our team configure the right parts washer for your application.

Request a Quote

Features

The following standard features are included on most Alliance parts washers. Standard features will vary by machine model.

Alliance’s exclusive “Full Access” fiberglass canopy (U.S. Patent No, 5,630,435) provides unobstructed access to the interior of the machine. All parts cleaning equipment requires regular routine maintenance, and the “Full Access” canopy design provides greater access for maintenance and process adjustment.

The solution tanks on the Alliance parts washers are constructed of heavy gauge, Type 304 stainless steel for extended equipment life. Tank bottoms are sloped to allow for complete drainage.

A hinged, gasketed clean-out door on the solution tank provides access to the tank interior for periodic maintenance. The door frame is flush to the tank bottom to facilitate easy tank cleaning. The tank bottom is pitched to the drain on the opposite side to prevent residual water from draining out of the clean-out door.

Periodic maintenance of the nozzles is important for optimum machine performance. Clip-on spray nozzles allow for quick and easy removal, cleaning, and adjustment without the need for tools. Nozzles are made of polypropylene and are available in a variety of sizes and flow rates/angles.

The Firebar-style electric heating elements feature a flat surface geometry, which reduces scaling, coking, and degrading. Gas burner and steam heating systems are also available.

Operating at the correct solution temperature will optimize the cleaning performance and save on energy costs. A thermostat controller allows the operator to adjust the heat setting to achieve the desired operating temperature. Heating elements will automatically cycle on/off to maintain the set temperature.

With water-based parts washers, evaporation occurs naturally. Water make-up can be done automatically, eliminating the need for the operator to monitor the solution level. A level sensor actuates a solenoid valve when the solution level is low, allowing water to enter the machine. The pump and heat source will shut off to prevent damage until solution reaches adequate levels.

The split-style drain port is designed to allow complete drainage of the tank for periodic inspection and cleaning. An overflow port is also included.

A horizontal solution pump is available in varying materials and ratings depending on the cleaning application.

E-Series models include rear tank access with a removable chip basket for coarse filtration.

Ambient blowoff removes gross amounts of moisture from parts. Air knives and/or air manifolds can be configured to be adjustable.

Accessories

The following optional accessories can be purchased with most Alliance parts washers. Additional items may also be available.

The “Aqualescer” is an oil coalescer with stainless steel parallel plate design for removing floating oils from aqueous cleaning solutions and process tanks. These oil coalescers are also offered in mild steel construction for machine coolant tank applications. Five (5) standard Aqualescer models are available. Sizes range from 0.5 GPM to 3.0 GPM flow rates.

The “Aquaskim” belt-type oil skimmer is designed for removing floating contaminants from parts washer bath, coolant sumps, and other oil-contaminated applications. The unit is constructed of stainless steel, utilizes a 4″ wide stainless steel oil skimmer belt, and has a lift-off fiberglass hood which covers internal components. The Aquaskim can remove up to 6 gal/hr of floating oils, depending upon the viscosity and solution condition.

A belt-type oil skimmer removes floating contaminants from the surface of the solution. The 1” belt is constructed of stainless steel and can remove up to 0.5 gal/hr of floating oils.

The exhaust fan system draws steam vapor from inside the washer for venting outside. External ducting is required.

The mist collector exhaust system removes steam from the interior of the machine and vents directly to room atmosphere. Cooler room air is mixed with air from the wash system to assist in reducing moisture in exhaust air. Mist collectors can be used in place of conventional exhaust fans and do not require external ducting.

Micro-filtration includes an externally mounted filter chamber located on the discharge of the solution pump. A stainless steel inner basket holds a disposable bag that filters 100% of a cleaning solution. Filter bags are available in a range of micron sizes, sized based on the application. Filter chambers are available in a variety of capacities, configurations, and either stainless steel or mild steel construction. A contamination sensor can also be added to monitor filters and trigger an alarm condition.

Cleaning chemistry can be automatically added during operation by a water-driven proportional injector. The chemical injector automatically adds the desired percentage of chemistry, mixing water and chemical prior to entering the solution tank.

Photo-eye product sensors located and the load and unload ends of the washer sense when a part is present on the conveyor. A timer in the control cabinet can be set so that the pumps, blowers, heat, and conveyor turn on or off in sequence depending on the presence of a part.

Our new pull-out spray header design allows for quick and easy access to spray nozzles for cleaning and adjustments. With a few simple steps, both upper and lower spray manifolds can be completely pulled out of the machine and just as easily be put back into operation without the need for tools or complicated instructions.

Stainless steel nozzles have a standard NPT male thread and are screwed directly to interior spray piping. Stainless steel nozzles may be used in place of or in addition to PPRO spray nozzles.

Additional nozzles are placed to spray down debris on the shed sheets and direct it toward the chip baskets and then to the solution tank. This helps reduce cleaning and maintenance time.

Front and rear tank access openings allow for easy periodic maintenance and inspection, which is beneficial when rinsing out debris and sediment during tank cleaning.

Alliance’s exclusive AquaFire drop-in heating elements conserve resources and reduce machine downtime. The design incorporates a submersible watertight stainless steel junction box and tube extension that allows the heater to be mounted to the tank for quick change-out. These elements have an incoloy sheath which resists corrosion. The flat surface geometry prevents debris build-up on the element which extends heater life. Standard heating elements are typically mounted horizontally through the tank sidewall, requiring the tank to be drained prior to inspection or replacement of the heating element.

A light curtain sensor system with mesh guarding can be placed at the load or unload ends of the machine for operator safety. When the light curtain beam is broken, the power is shut off to the conveyor or servo drive to prevent injury.

A vertical “seal-less” solution pump has no mechanical seals to wear out, and is mounted above the solution tank, minimizing maintenance and machine downtime.

Heated blowoff is used when parts need to exit the machine 100% dry. Air knives and/or air manifolds can be configured to be adjustable.

For many parts cleaning applications, special conveyors may be beneficial. A variety of entrance and exit conveyors can be configured to aid in part loading and unloading. A 180° return conveyor may help reduce labor costs and part handling.

Indexing washers utilize custom fixtures attached by chains to hold manufactured parts securely and in precise positions or orientations for washing, rinsing, and drying in a start/stop conveyor movement. Part fixtures consist of a stainless steel plate with non-metallic material at part contact points. Fixtures can be designed to hold one part or multiple parts depending on the cleaning application. A profile plate may be utilized at the load end of the washer to verify correct part loading on the fixture. Spray manifolds with strategically positioned nozzles are utilized for flushing out part features such as blind holes, passageways, hidden cavities, and leading/trailing surfaces. Drying is accomplished through the use of high-pressure blowers and timed compressed air for dislodging moisture from part cavities.  Moving manifolds and probing devices can also be incorporated for cleaning hard-to-reach areas. The benefit of using part fixtures and indexing is that it allows the cleaning system to specifically target part features that require critical cleaning.

Alliance’s Indexing washers can be engineered to run in either manual mode or designed to be integrated with robotic load/unload automation devices. Indexing is accomplished through the use of a servo drive conveyor system and the use of sensors to seamlessly communicate with automated loading and/or unloading devices. Sensors also aid in holding tight position tolerances. Electrical controls can be supplied to specification and the machines can be designed to interface with mating equipment, as handshake synchronization is an integral feature of all Alliance industrial cleaning equipment. Our indexing conveyors have the technology to account for accurate part positioning, maintain proper cycle times, and account for chain stretch; all critical to the operation of an indexing parts washer.
