Cleaning and Part Marking System for Manufacturing Cell (970/971)

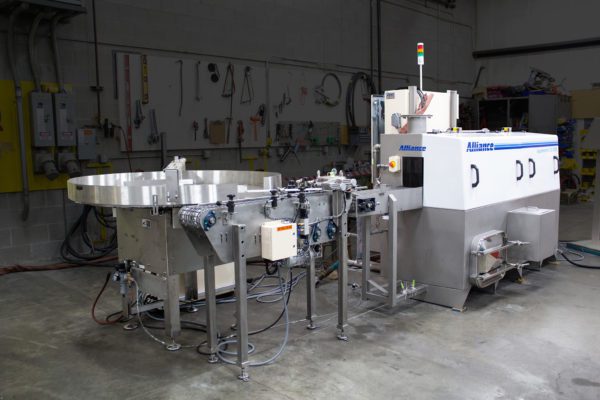

Machine #1

  • Customer: Manufacturer of bearings and constant velocity joints

  • Item to Clean: Steel constant velocity (CV) joints, varying sizes

  • Contamination: Cutting oils, soluble coolant, chips

  • Cleanliness Required: Visually clean

  • Dryness Required: (1) 100% dry; (2) Residual moisture acceptable

  • Production Rate: 1 part every 20-30 seconds

  • Process Parameters: (1) Wash, heated blow-off; (2) Wash, ambient blow-off

  • Machine Type: Aquamaster CB-800E (Conveyorized Belt)

Customer Background

The customer is a large worldwide manufacturer of precision industrial and automotive equipment, including bearings, constant velocity joints, and other components.

Challenge

The customer needed a washing system for their manufacturing cell which would clean, dry, and mark individual parts for production.

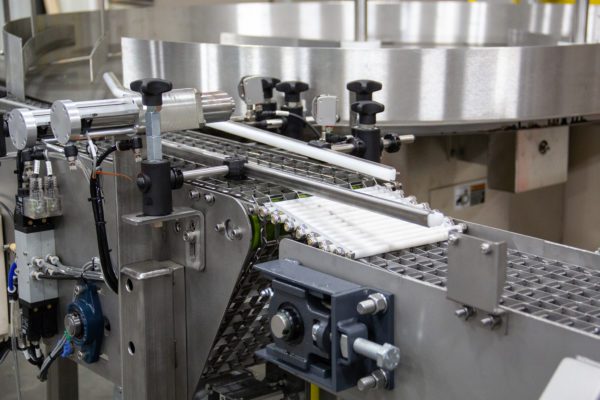

Accumulating table – Machine #1

Accumulating table – Machine #1

Solution

Alliance provided two Aquamaster CB-800E machines for the customer’s manufacturing cell, to be used both before and after parts go through a heat induction system. The parts first are manually placed onto a rotary accumulating conveyor on the load end of machine #1 and are released at timed intervals into the wash zone. Machine #1 utilizes a heated blow-off so that the parts are completely dry before exiting. At the end of the conveyor on machine #1, a pneumatic transfer device pushes the part onto a small table where it is rotated and scanned for verification. Parts are then picked and placed by a robot onto the customer-supplied heat induction system within the manufacturing cell. Upon completion, a robot again picks the parts and places them onto the conveyor of machine #2. Before entering the wash zone, parts are stopped by a pneumatic device and marked for identification. Parts then go through a wash and ambient blow-off. Finally, parts are again pushed onto a rotary table to be scanned for verification at the end of washer #2.

Aquamaster CB-800E Machine 2

Machine #2

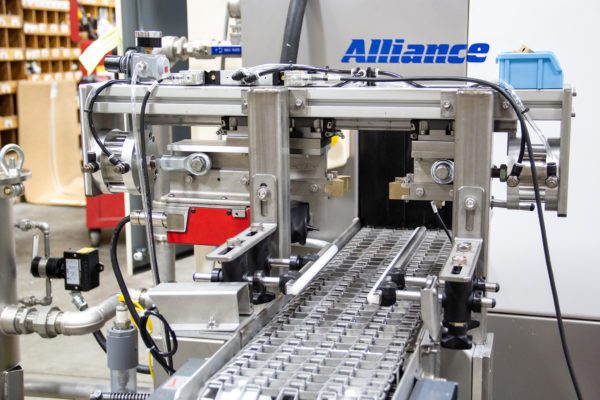

Part marking device – Machine #2

Part marking device – Machine #2
