• Customer: Manufacturer of hydraulic cylinders and swivels

  • Item to Clean: Iron hydraulic cylinders

  • Contamination: Miscellaneous manufacturing soils, coolants, and loose mill scale

  • Process Parameters: Wash

  • Cleanliness Required: Visually clean

  • Dryness Required: Residual moisture acceptable

  • Production Rate: Not specified

  • Machine Type: Aquamate SF-2000 (Stationary Fixture)

Customer Background

Manufacturer of hydraulic cylinders and swivels for use in a variety of industries, including agriculture, material handling, forestry, and military. Many of their products are manufactured using high-strength ductile iron. Focus is on producing hydraulic systems that can withstand very heavy loads under high pressures. The company designs, manufactures, and pressure-tests the products they produce. They also offer service and repair of hydraulic cylinders.

Challenge

Customer was seeking a washer for hydraulic cylinders of various sizes up to 4,000 lbs. Cylinders needed to be visually-clean but dryness was unimportant. The most challenging aspect was being able to clean the interior and exterior surfaces of cylinders with multiple lengths and diameters.

Solution

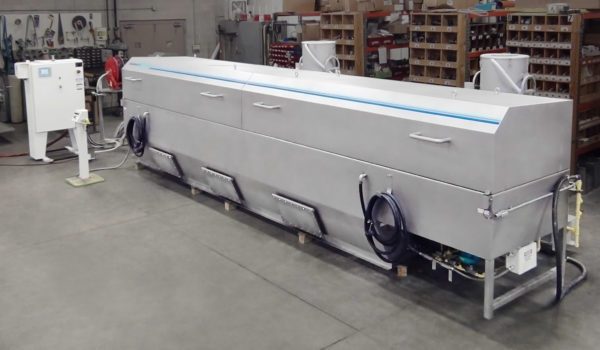

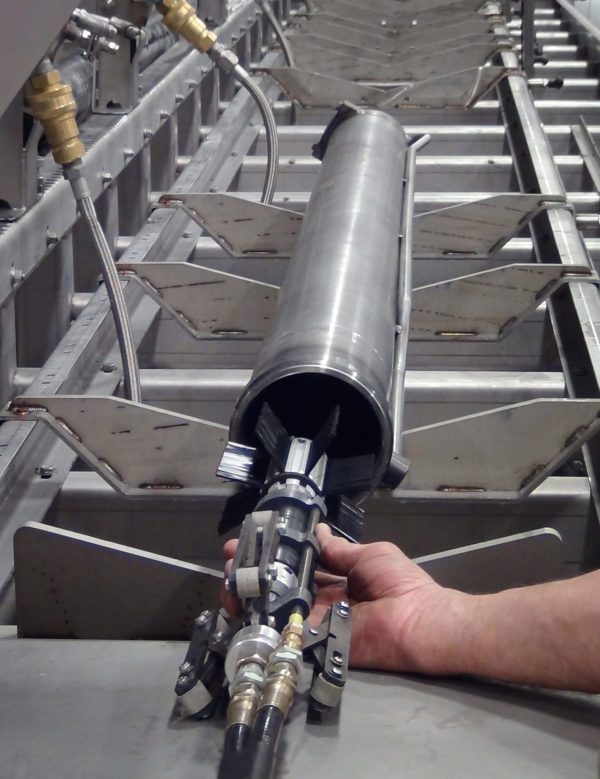

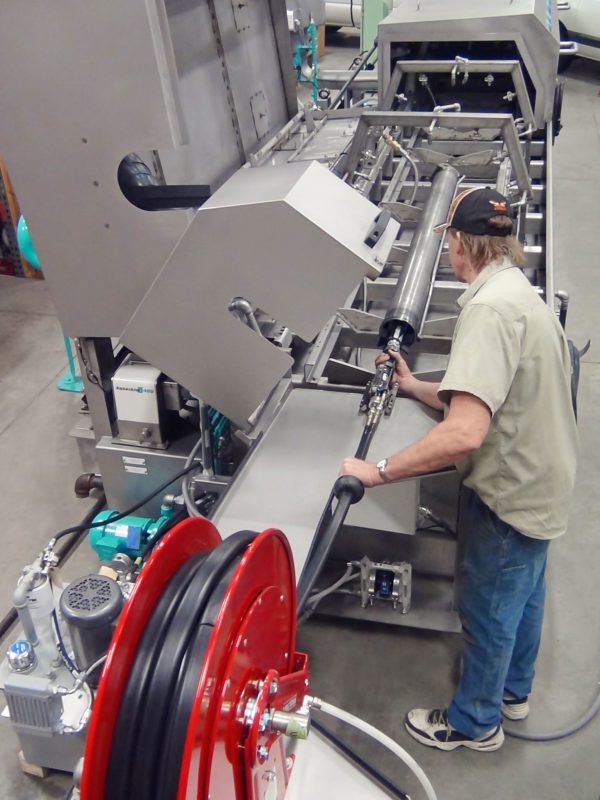

Alliance provided an Aquamate SF-2000 stationary fixture parts washer with dual-hinged canopies with hydraulic lift for easy part loading.  The dual-canopy design allows the operator to open one segment for shorter cylinders or both for longer sizes. A 50′ hose reel with a pneumatically-powered scrub can be manually fed into the cylinder for scrubbing the interior diameter. The brush head is adjustable to expand or contract in size to accommodate varying cylinder sizes.  Swiveling spray bars with adjustable nozzles can be easily positioned to accommodate exterior cleaning of both short and long cylinders. An optional mist-collecting exhaust system and a belt-type oil skimmer are also included.
