Nu/Clean™ Aqueous PCB Cleaning Systems
Available with our patented Flood Box™ technology for superior PCB penetration
Touchscreen controls for optimized, repeatable cleaning processes
Balanced pressures and flow rates for consistent, uniform cleaning
Fast, energy-efficient drying with forced-air systems
Made in the USA with premium industrial components
Available in both the 800 Series and 300 Series models
- Enhanced Flood Box™ technology – Learn more
Proven Performance in Electronic Component Cleaning
Since 1952, Technical Devices has supplied the electronic component industry with high-quality production cleaning equipment and built a reputation for exceptional after-market service and long-term product support. As a division of Alliance Manufacturing, Technical Devices continues to lead in cleaning innovation with advanced technologies and features that deliver reliable, high-performance cleaning results while minimizing environmental impact.
The Nu/Clean™ line of aqueous cleaners for printed circuit boards (PCBs) is engineered to be among the safest, quietest, and most energy-efficient cleaning systems available. Designed for modern electronics manufacturing, Nu/Clean™ systems deliver consistent, high-quality cleaning while reducing chemical usage, energy consumption, and operational costs.
Request a Quote
Let our team configure the right cleaning system for your application.
Flood Box™ Wash Cycle
More About Nu/Clean™
Touchscreen Controls
Intuitive touchscreen controls make the Nu/Clean™ inline aqueous cleaners easy to operate. Robust Windows-based software controls and monitors machine functions. Password controls and recipe storage allow engineers to maintain control of production. With optional remote viewing, process control personnel can monitor real-time production.
Flood Box™ Technology
Our enhanced Flood Box™ technology represents a major advance in aqueous printed circuit board washing. The Flood Box™ is a self-contained section within the wash area where circuit boards are fully submerged in turbulent wash fluid. While inside the Flood Box, the boards are also subjected to high-pressure spray from precision nozzles, creating a dual-action cleaning effect. This combination ensures even low-clearance areas and densely populated regions of the PCB are completely penetrated, something traditional top-and-bottom sprays alone cannot achieve.

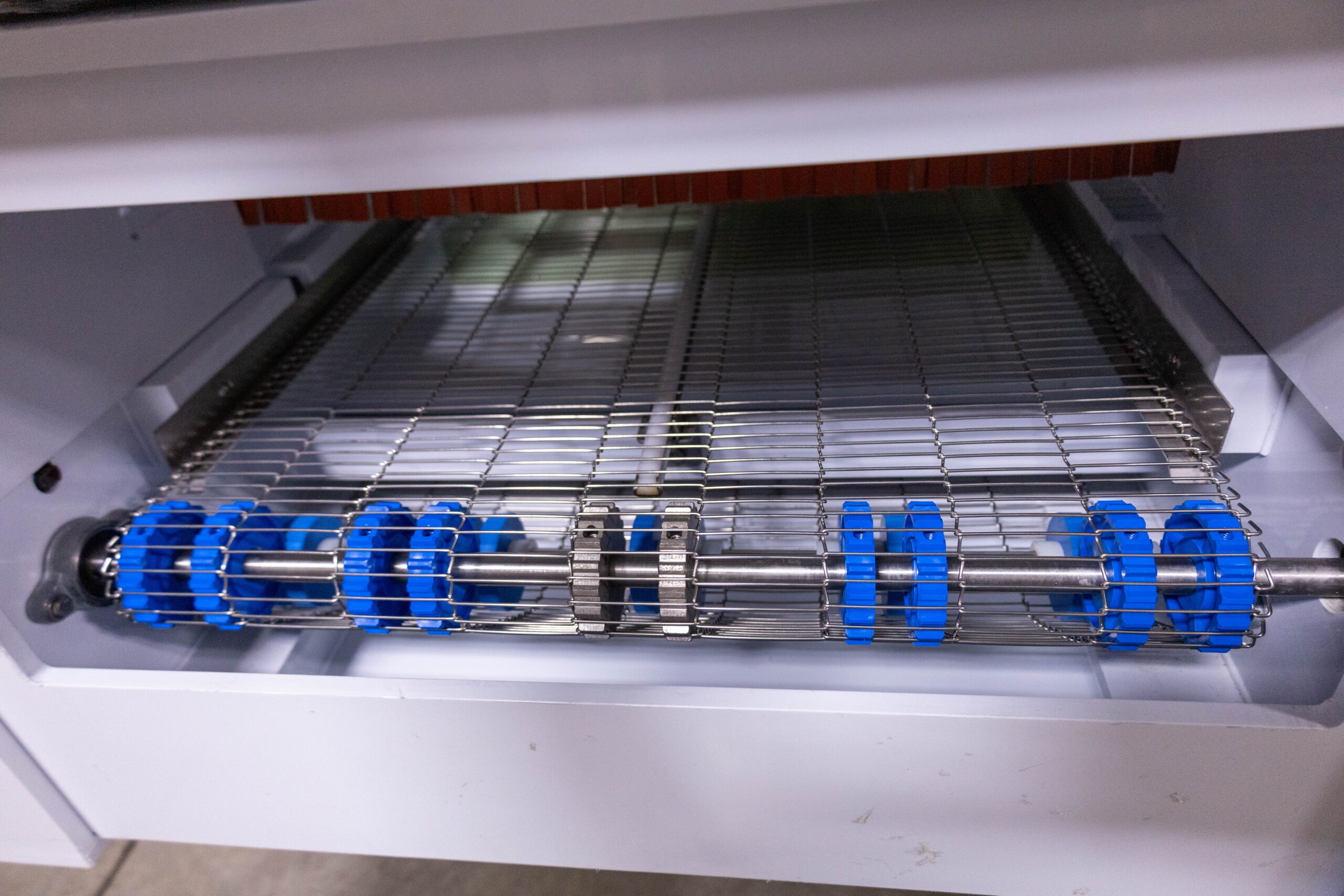

Conveyor Systems
Our single or dual belt conveyor systems are customizable to your specific product needs. We offer various pitch and mesh sizes, as well as flight, pockets, and special belt coatings. Our innovative silencing shroud at the end of the conveyor makes the Nu/Clean™ aqueous cleaner the quietest in the industry.
Quick-Disconnect Spray Bars and Interchangeable Nozzles
The quick-disconnect design on the spray bars makes the Nu/Clean™ aqueous cleaners make it a simple process to remove and replace spray bars for different applications or to perform regular maintenance. Dozens of different nozzle types and sizes are available for use in the Nu/Clean™. This flexibility makes it easy to optimize the cleaning process for various product applications, from low standoff PCBs to glass lenses to helicopter blades.
Chemistry Conservation
The Nu/Clean™ has many features to limit chemistry loss. The use of air curtains on either side of the wash stage help contain the chemistry. Isolation stages prevent chemistry from contaminating the rinse water. Our innovative exhaust system minimizes chemistry vapor loss throughout the machine.
Pumps and Plumbing
Each of the stainless steel pumps used in the Nu/Clean™ is selected based on achieving the right balance of pressure and flow. Everything is clearly labeled to make operation and maintenance easy.
Blowers and Drying
Our blowers slide out for easy access. We use high-efficiency blowers that provide the maximum results with the least amount of power consumption. Our new IR heater tunnel, available only on the Nu/Clean™ 800 Series, provides a powerful added drying section for difficult-to-dry products.
Nu/Clean™ Models

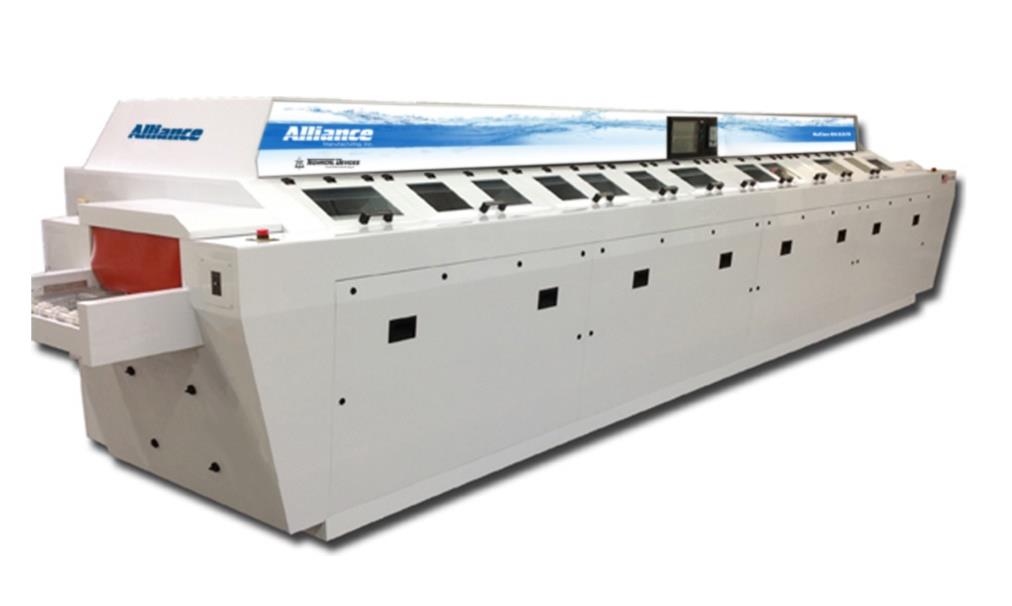

Nu/Clean 800 Series
The Nu/Clean 800 series offers top-of-the-line cleaning. It features incredible wash, rinse, and drying capabilities with plenty of isolation between stages. 15 HP stainless steel pumps offer the right balance of pressure and flow to aid in the removal of residues and contaminants. The air curtain and cascade water knife in the wash section minimize any loss of chemistry. The six air knives (included three heated) in the cleaner powered by two super efficient blowers plus the IR heater tunnel at the end of the drying section provide optimum drying power.
Our enhanced Flood Box™ technology represents a major advance in aqueous printed circuit board washing. The Flood Box™ is a self-contained section within the wash area where circuit boards are fully submerged in turbulent wash fluid. While inside the Flood Box, the boards are also subjected to high-pressure spray from precision nozzles, creating a dual-action cleaning effect. This combination ensures even low-clearance areas and densely populated regions of the PCB are completely penetrated, something traditional top-and-bottom sprays alone cannot achieve.

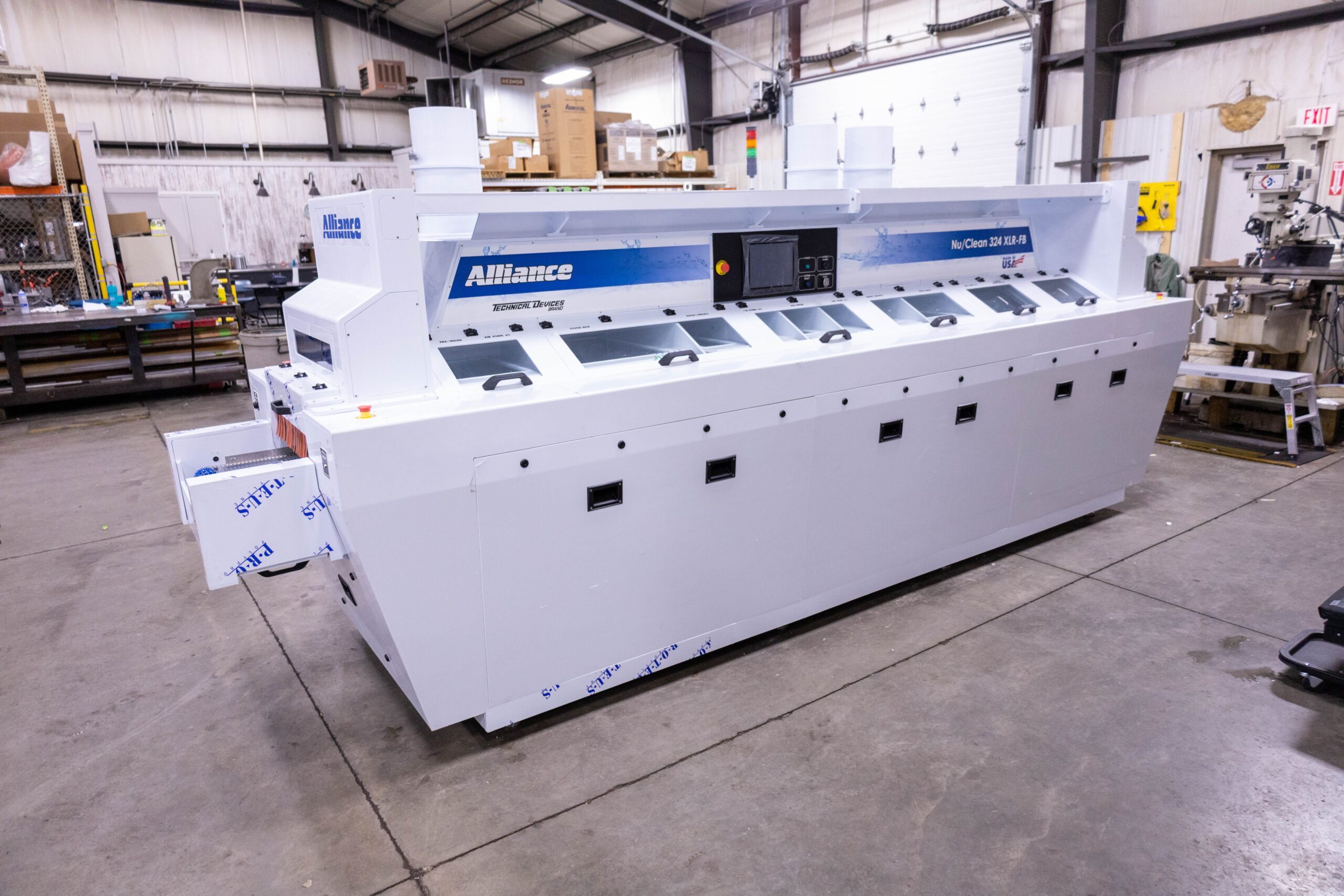

Nu/Clean 300 Series
Our most popular model is the Nu/Clean 318 XL, which is part of our Nu/Clean 300 Series. It features a prewash section for the removal of gross contaminants, followed by a wash section capable of handling chemistry. There is isolation between the wash and rinse sections. A rinse and then a final rinse make sure any contaminants or residual wash solution are removed from the product. A powerful drying section with two super efficient blowers makes sure the product exits fully dry.
Beyond efficiency and compliance, the Flood Box™ ensures superior cleaning results for modern electronics. Every PCB passes through a controlled environment where turbulent fluid currents and pressurized sprays work together to remove oils, flux residues, and other contaminants. The result is a reliably clean, dry assembly ready for sensitive downstream processes.
